Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8187- ISO/R 606

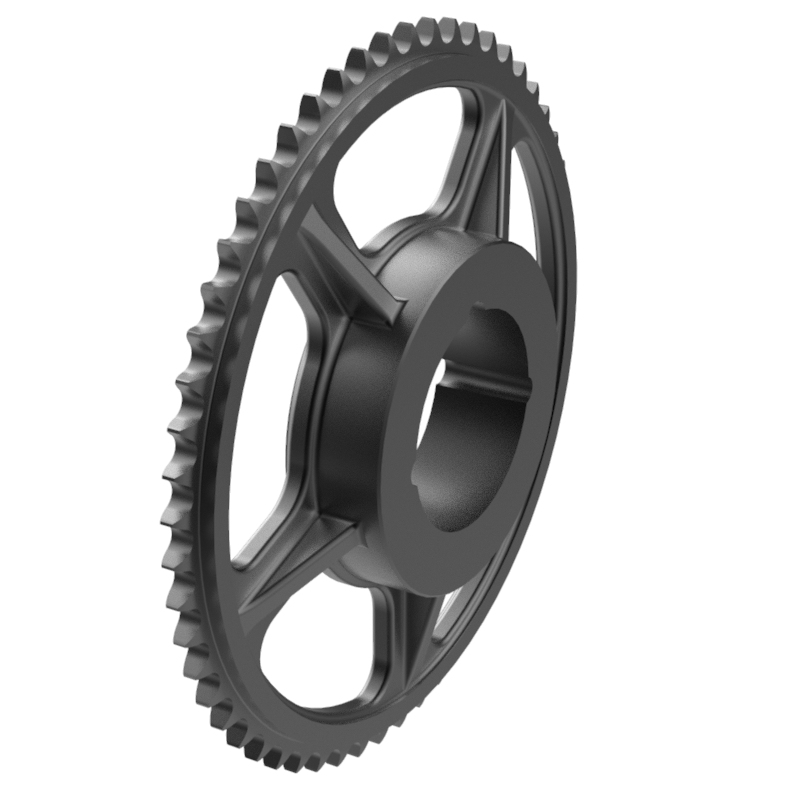

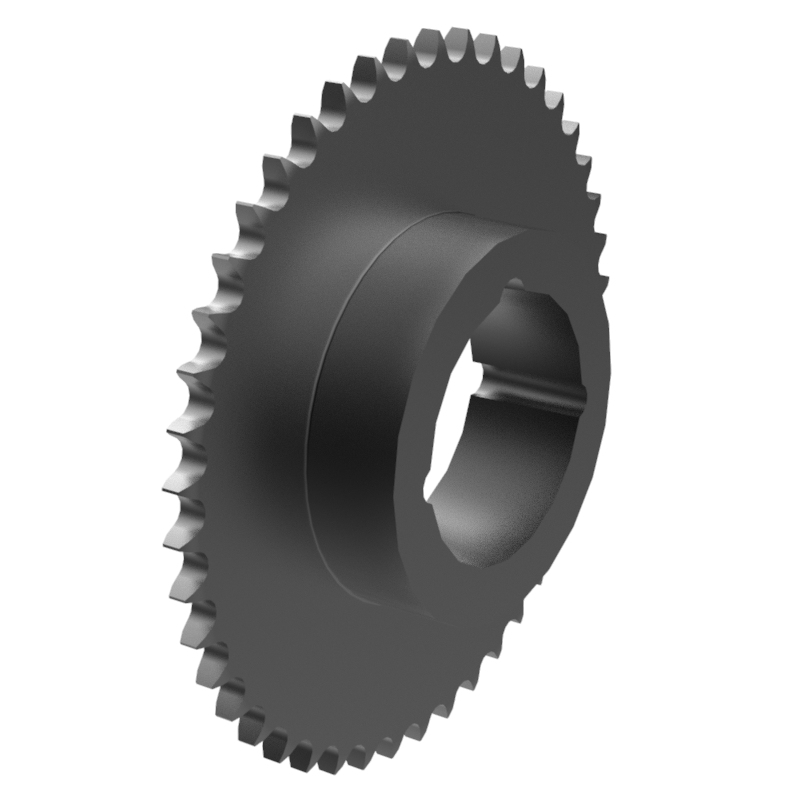

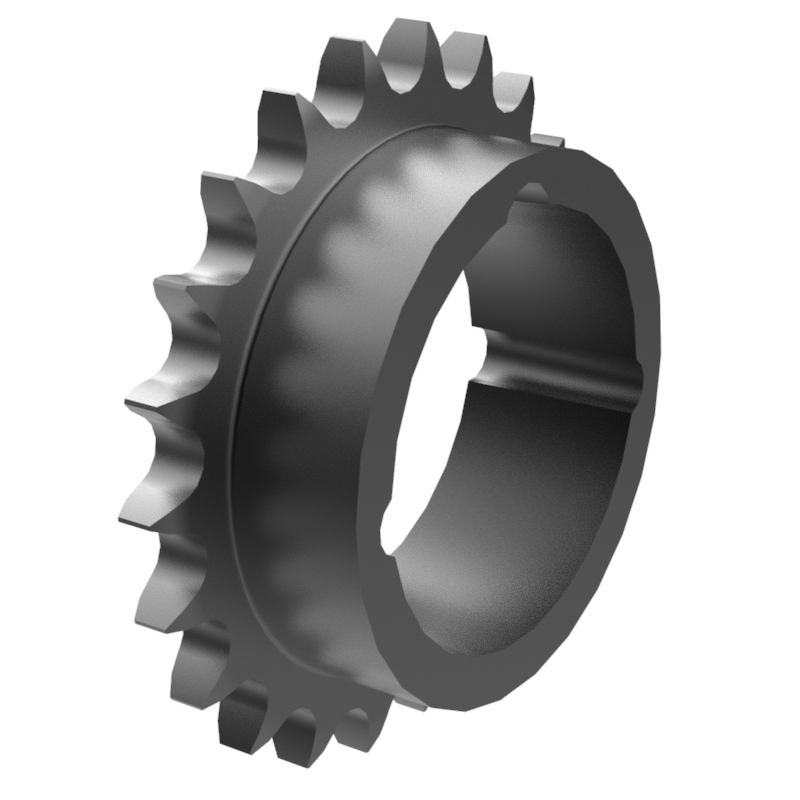

TAPERLOCK SPROCKETS 08B-1
Pitch 12,7 mm
Inner width 7,75 mm
Roller diameter 8,51 mm
Catalog
No. |
Z |
Bush
No. |
D |
L |
kg/pc |
| 08B1-TL-Z15 |
15 |
1008 |
45 |
22 |
0.16 |
| 08B1-TL-Z16 |
16 |
1108 |
50 |
22 |
0.20 |
| 08B1-TL-Z17 |
17 |
1210 |
60 |
25 |
0.22 |
| 08B1-TL-Z18 |
18 |
1210 |
60 |
25 |
0.27 |
| 08B1-TL-Z19 |
19 |
1210 |
63 |
25 |
0.30 |
| 08B1-TL-Z20 |
20 |
1610 |
71 |
25 |
0.33 |
| 08B1-TL-Z21 |
21 |
1610 |
71 |
25 |
0.36 |
| 08B1-TL-Z22 |
22 |
1610 |
71 |
25 |
0.40 |
| 08B1-TL-Z23 |
23 |
1610 |
76 |
25 |
0.50 |
| 08B1-TL-Z24 |
24 |
1610 |
76 |
25 |
0.53 |
| 08B1-TL-Z25 |
25 |
1610 |
76 |
25 |
0.56 |
| 08B1-TL-Z26 |
26 |
1610 |
76 |
25 |
0.60 |
| 08B1-TL-Z27 |
27 |
1610 |
76 |
25 |
0.63 |
| 08B1-TL-Z28 |
28 |
2012 |
90 |
32 |
0.77 |
| 08B1-TL-Z30 |
30 |
2012 |
90 |
32 |
0.91 |
| 08B1-TL-Z38 |
38 |
2012 |
90 |
32 |
1.25 |
| 08B1-TL-Z45 |
45 |
2012 |
100 |
32 |
1.68 |
| 08B1-TL-Z57 |
57 |
2012 |
100 |
32 |
2.78 |
| 08B1-TL-Z76 |
76 |
2012 |
100 |
32 |
3.81 |
| 08B1-TL-Z95 |
95 |
2012 |
100 |
32 |
5.95 |
| 08B1-TL-Z114 |
114 |
2517 |
110 |
45 |
8.57 |
|
