Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

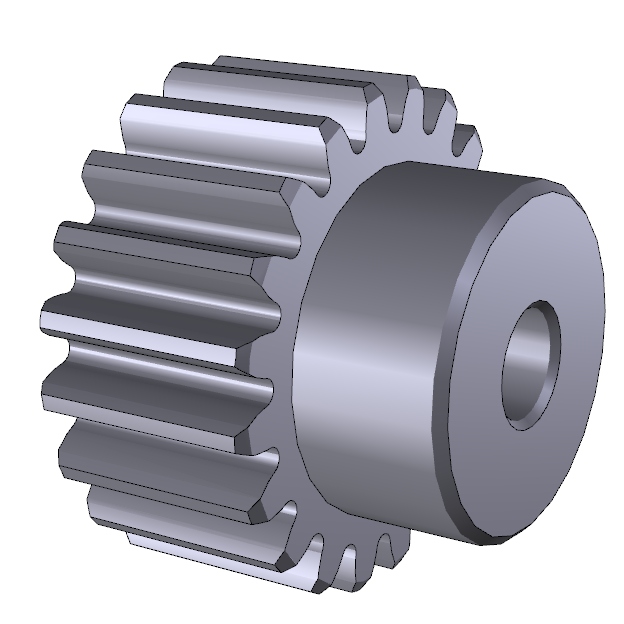

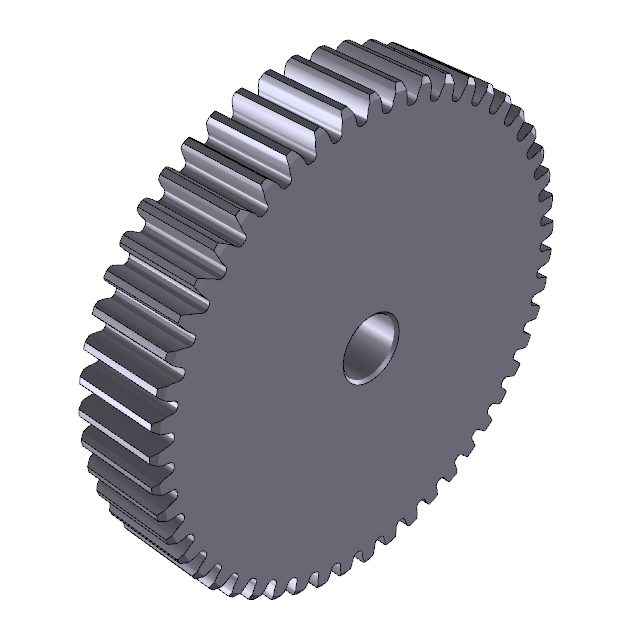

Standard Spur Gear Mod. 6
Tooth width A: 60 mm
Total width L: 80 mm
Pressure Angle 20°
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
|
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
| |
| dp |
de |
dm |
d |
|
dp |
de |
dm |
d |
| |
|
mm |
mm |
mm |
mm |
kg |
|
|
|
mm |
mm |
mm |
mm |
kg |
| M6-12 |
12 |
72.0 |
84.0 |
54 |
20 |
1.82 |
|
|
|
|
|
|
|
|
| M6-13 |
13 |
78.0 |
90.0 |
60 |
20 |
2.20 |
|
|
|
|
|
|
|
|
| M6-14 |
14 |
84.0 |
96.0 |
65 |
20 |
1.60 |
|
|
|
|
|
|
|
|
| M6-15 |
15 |
90.0 |
102.0 |
70 |
20 |
3.01 |
|
|
|
|
|
|
|
|
| M6-16 |
16 |
96.0 |
108.0 |
75 |
20 |
3.46 |
|
|
|
|
|
|
|
|
| M6-18 |
18 |
108.0 |
120.0 |
80 |
20 |
4.33 |
|
|
|
|
|
|
|
|
| M6-20 |
20 |
120.0 |
132.0 |
90 |
20 |
5.43 |
|
|
|
|
|
|
|
|
| M6-23 |
23 |
138.0 |
150.0 |
110 |
25 |
8.00 |
|
|
|
|
|
|
|
|
| M6-24 |
24 |
144.0 |
156.0 |
110 |
25 |
7.88 |
|
|
|
|
|
|
|
|
| M6-25 |
25 |
150.0 |
162.0 |
110 |
25 |
8.42 |
|
|
|
|
|
|
|
|
| M6-28 |
28 |
168.0 |
180.0 |
- |
25 |
8.41 |
|
|
|
|
|
|
|
|
| M6-30 |
30 |
180.0 |
192.0 |
- |
25 |
9.69 |
|
|
|
|
|
|
|
|
| M6-32 |
32 |
192.0 |
204.0 |
- |
25 |
11.05 |
|
|
|
|
|
|
|
|
| M6-35 |
35 |
210.0 |
222.0 |
- |
25 |
13.27 |
|
|
|
|
|
|
|
|
| M6-38 |
38 |
228.0 |
240.0 |
- |
25 |
15.69 |
|
|
|
|
|
|
|
|
| M6-40 |
40 |
240.0 |
252.0 |
- |
25 |
17.42 |
|
|
|
|
|
|
|
|
|
|
