Spur gears with Hardened Teeth

Description

Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

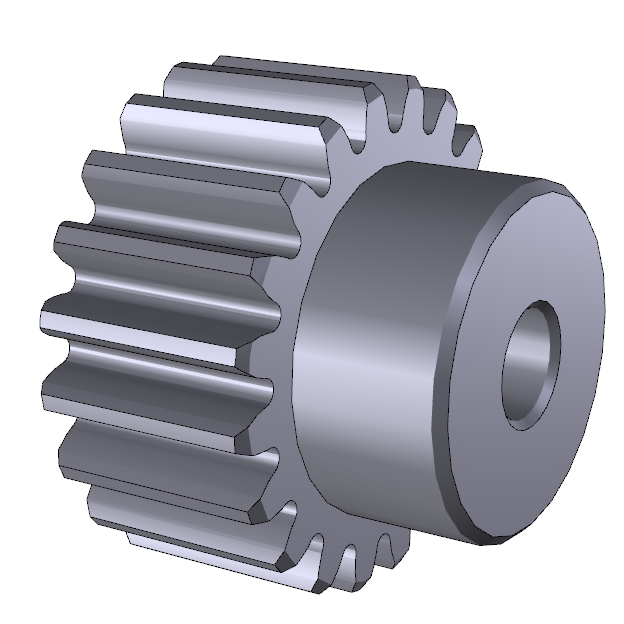

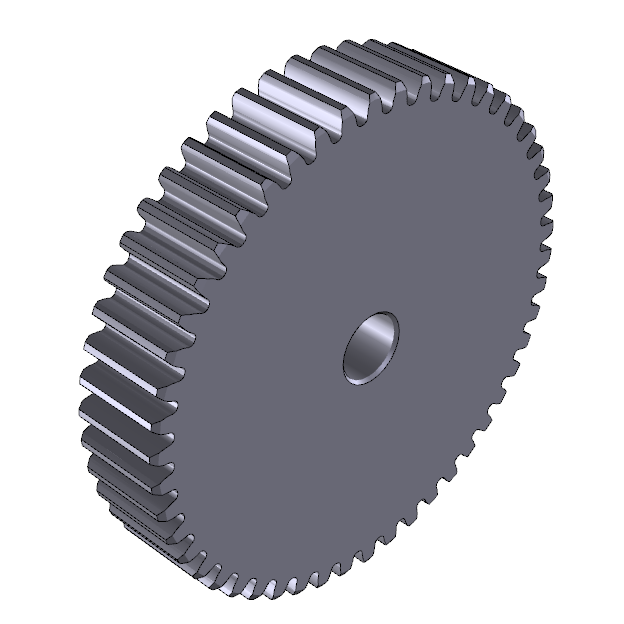

Standard Spur Gear Mod. 1
Tooth width A: 15 mm
Total width L: 25 mm
Pressure Angle 20°

Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc	Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc
		Pitch Dia	Outside Dia	Hub Dia	Bore				Pitch Dia	Outside Dia	Hub Dia	Bore
		dp	de	dm	d				dp	de	dm	d
		mm	mm	mm	mm	kg			mm	mm	mm	mm	kg
M1-12	12	12.0	14.0	9	5	0.01	M1-47	47	47.0	49.0	30	10	0.24
M1-13	13	13.0	15.0	10	5	0.02	M1-48	48	48.0	50.0	30	10	0.25
M1-14	14	14.0	16.0	10	5	0.02	M1-49	49	49.0	51.0	30	10	0.26
M1-15	15	15.0	17.0	12	6	0.02	M1-50	50	50.0	52.0	30	12	0.26
M1-16	16	16.0	18.0	13	6	0.03	M1-51	51	51.0	53.0	40	12	0.32
M1-17	17	17.0	19.0	14	8	0.03	M1-52	52	52.0	54.0	40	12	0.33
M1-18	18	18.0	20.0	15	8	0.03	M1-53	53	53.0	55.0	40	12	0.33
M1-19	19	19.0	21.0	15	8	0.04	M1-54	54	54.0	56.0	40	12	0.34
M1-20	20	20.0	22.0	16	8	0.04	M1-55	55	55.0	57.0	40	12	0.36
M1-21	21	21.0	23.0	16	8	0.05	M1-56	56	56.0	58.0	40	12	0.37
M1-22	22	22.0	24.0	18	8	0.05	M1-57	57	57.0	59.0	40	12	0.38
M1-23	23	23.0	25.0	18	8	0.06	M1-58	58	58.0	60.0	40	12	0.39
M1-24	24	24.0	26.0	20	8	0.06	M1-59	59	59.0	61.0	40	12	0.40
M1-25	25	25.0	27.0	20	8	0.07	M1-60	60	60.0	62.0	40	12	0.41
M1-26	26	26.0	28.0	20	8	0.07	M1-61	61	61.0	63.0	50	12	0.47
M1-27	27	27.0	29.0	20	8	0.08	M1-62	62	62.0	64.0	50	12	0.49
M1-28	28	28.0	30.0	20	8	0.08	M1-63	63	63.0	65.0	50	12	0.50
M1-29	29	29.0	31.0	20	8	0.09	M1-64	64	64.0	66.0	50	12	0.51
M1-30	30	30.0	32.0	20	8	0.09	M1-65	65	65.0	67.0	50	12	0.52
M1-31	31	31.0	33.0	25	10	0.11	M1-66	66	66.0	68.0	50	12	0.53
M1-32	32	32.0	34.0	25	10	0.12	M1-67	67	67.0	69.0	50	12	0.55
M1-33	33	33.0	35.0	25	10	0.12	M1-68	68	68.0	70.0	50	12	0.56
M1-34	34	34.0	36.0	25	10	0.13	M1-69	69	69.0	71.0	50	12	0.57
M1-35	35	35.0	37.0	25	10	0.14	M1-70	70	70.0	72.0	50	12	0.58
M1-36	36	36.0	38.0	25	10	0.14	M1-72	72	72.0	74.0	-	12	0.46
M1-37	37	37.0	39.0	25	10	0.15	M1-75	75	75.0	77.0	-	12	0.51
M1-38	38	38.0	40.0	25	10	0.16	M1-76	76	76.0	78.0	-	12	0.52
M1-39	39	39.0	41.0	25	10	0.16	M1-80	80	80.0	82.0	-	12	0.58
M1-40	40	40.0	42.0	25	10	0.17	M1-85	85	85.0	87.0	-	12	0.65
M1-41	41	41.0	43.0	30	10	0.19	M1-90	90	90.0	92.0	-	12	0.73
M1-42	42	42.0	44.0	30	10	0.20	M1-95	95	95.0	97.0	-	12	0.82
M1-43	43	43.0	45.0	30	10	0.21	M1-100	100	100.0	102.0	-	12	0.91
M1-44	44	44.0	46.0	30	10	0.22	M1-110	110	110.0	112.0	-	12	1.10
M1-45	45	45.0	47.0	30	10	0.23	M1-114	114	114.0	116.0	-	12	1.19
M1-46	46	46.0	48.0	30	10	0.23	M1-120	120	120.0	122.0	-	12	1.32
							M1-127	127	127.0	129.0	-	12	1.47
