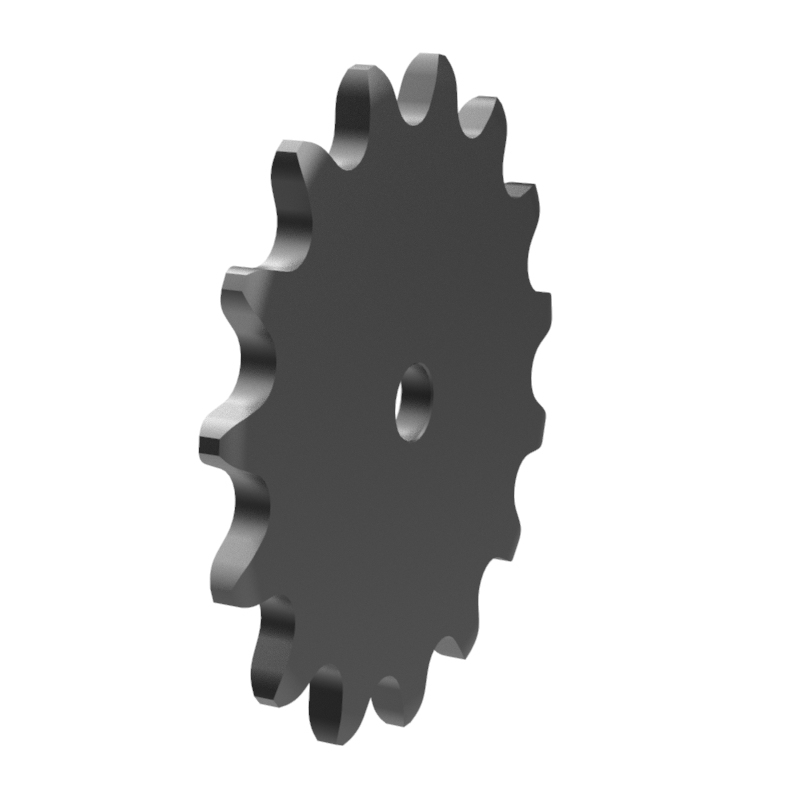

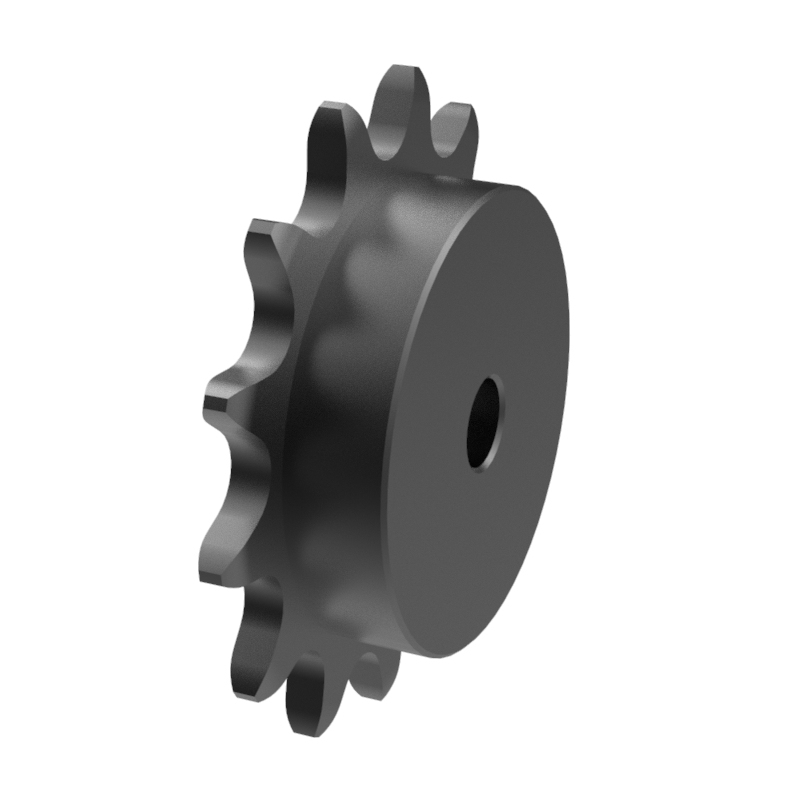

Standard Double Pitch Sprocket for R Rollers B-type

Description

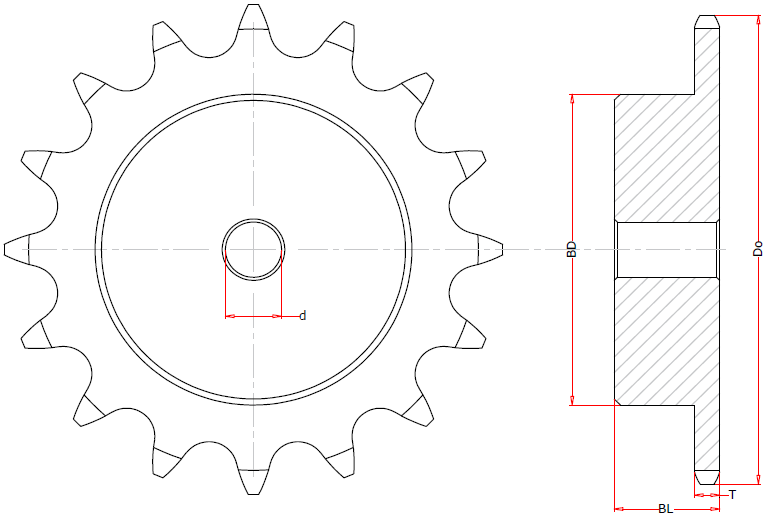

TYPE	No. of Active Teeth	Do	Dp	d	BD	BL	Weight kg	TYPE	No. of Active Teeth	Do	Dp	d	BD	BL	Weight kg
2042B Chain: No.C2042 Chain Pitch: 25.4 mm Width between inner plates: 7.85 mm Roller Diameter: 15.88 mm Tooth Width: (T) 7.2 mm	7	68	58.54	14	★40	25	0.26	2052B Chain: No.C2052 Chain Pitch: 31.75 mm Width between inner plates: 9.40 mm Roller Diameter: 19.05 mm Tooth Width: (T) 8.7 mm	7	85	73.18	20	★50	28	0.46
	8	77	66.37	14	★48	25	0.37		8	96	82.97	20	★60	28	0.67
	9	85	74.27	14	52	25	0.47		9	106	92.83	20	66	28	0.86
	10	93	82.20	15	63	25	0.70		10	116	102.75	20	73	28	1.10
	11	102	90.16	15	63	25	0.77		11	127	112.70	20	73	28	1.20
	12	108	98.14	15	63	25	0.84		12	138	122.67	20	73	28	1.30
	13	118	106.14	16	63	25	0.97		13	148	132.67	20	73	28	1.50
	14	127	114.15	16	63	25	1.07		14	158	142.68	20	73	28	1.90
	15	135	122.17	20	68	28	1.26		15	168	152.71	20	73	28	2.00
	16	143	130.20	20	68	28	1.30		16	179	162.75	20	73	28	2.30
	17	151	138.23	20	68	28	1.35		17	189	172.79	20	83	35	2.45
	18	159	146.27	20	68	28	1.45		18	199	182.84	20	83	35	2.75
	19	167	154.32	20	68	28	1.60		19	209	192.90	20	83	35	2.95
	20	176	162.37	20	68	28	1.80		20	220	202.96	20	83	35	3.15
	21	183	170.42	20	73	32	1.91		21	229	213.03	20	83	35	3.25
	22	192	178.48	26	73	32	2.03		22	240	223.10	26	83	35	3.48
	23	200	186.54	26	73	32	2.15		23	250	233.17	26	83	35	3.71
	24	208	194.60	26	73	32	2.28		24	260	243.25	26	83	35	3.96
	25	216	202.66	26	73	32	2.42		25	270	253.33	26	83	35	4.22
	26	224	210.72	26	73	32	2.56		26	281	263.41	26	83	35	4.49
	28	241	226.86	26	73	32	2.87		28	301	283.57	26	83	35	5.06
	30	257	243.00	26	73	32	3.19		30	321	303.75	26	83	35	5.68
	32	273	259.14	26	83	32	4.04	2082B Chain: No.C2082 Chain Pitch: 50.80 mm Width between inner plates: 15.75 mm Roller Diameter: 28.58 mm Tooth Width: (T) 14.6 mm	7	136	117.08	22	76	40	1.85
2062B Chain: No.C2062 Chain Pitch: 38.10 mm Width between inner plates: 12.57 mm Roller Diameter: 22.23 mm Tooth Width: (T) 11.7 mm	7	102	87.81	18	★60	40	0.97		8	153	132.75	22	93	40	2.64
	8	115	99.56	18	★75	40	1.44		9	170	148.53	26	110	40	3.56
	9	128	111.40	18	80	40	1.80		10	187	164.39	26	93	40	3.29
	10	140	123.29	18	80	45	2.50		11	204	180.31	26	107	45	4.42
	11	153	135.24	18	83	45	2.60		12	220	196.28	26	107	45	4.94
	12	165	147.21	18	83	45	2.80		13	237	212.27	26	107	45	5.46
	13	177	159.20	25	83	45	3.10		14	253	228.29	26	107	45	6.09
	14	190	171.22	25	83	45	3.60		15	269	244.34	30	107	45	6.70
	15	202	183.25	25	83	45	3.90		16	286	260.39	30	107	45	7.42
	16	214	195.29	25	83	45	4.20		17	302	276.46	30	107	45	8.12
	17	227	207.35	25	93	45	4.60		18	319	292.55	30	117	50	9.76
	18	239	219.41	25	93	45	5.00		19	335	308.64	30	117	50	10.56
	19	251	231.48	25	93	45	5.50		20	351	324.74	30	117	50	11.46
	20	263	243.55	25	93	45	6.00		24	416	389.19	35	117	50	16.30
	21	276	255.63	25	93	45	5.89		25	433	405.32	35	117	50	17.50
	22	288	267.72	26	93	45	6.34		26	449	421.45	35	117	50	18.70
	24	312	291.90	26	93	45	7.28		28	481	453.72	35	117	50	21.20
	25	324	303.99	26	93	45	7.77		30	514	485.99	35	117	50	24.00
	26	337	316.09	26	93	45	8.77
	28	361	340.29	26	93	45	9.90
	30	385	364.49	26	93	45	11.20
2102B Chain: No.C2102 Chain Pitch: 63.50 mm Width between inner plates: 18.90 mm Roller Diameter: 39.67 mm Tooth Width: (T) 17.6 mm	10	233	205.49	35	107	56	7.00
	11	254	225.39	35	117	56	8.00
	12	275	245.35	35	117	56	9.50
