| Catalog No. |

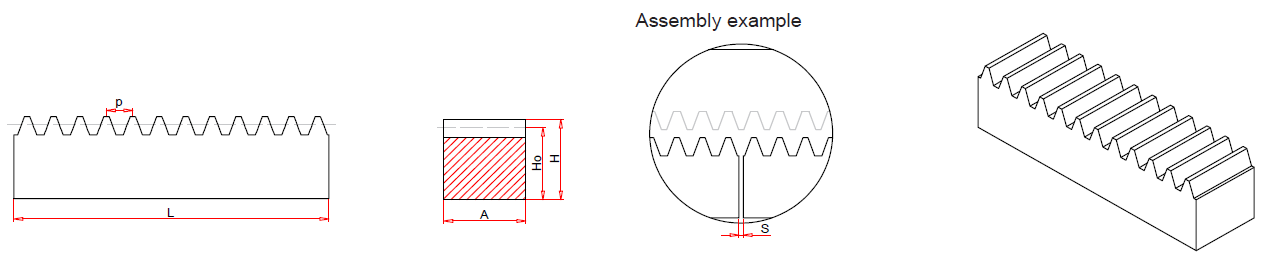

Module | L | Z | Pitch | kg/pc | ||||
| p | S | A | H | Ho | |||||
| mm | mm | mm | mm | mm | mm | kg | |||
| Rack-1 x 500 | 1 x 500 | 499.51 | 159 | 3.14 | 0.5 | 15 | 15 | 14.0 | 0.82 |
| Rack-1 x 1000 | 1 x 1000 | 1,002.17 | 319 | 3.14 | 0.5 | 15 | 15 | 14.0 | 1.50 |
| Rack-1 x 2000 | 1 x 2000 | 2,001.20 | 637 | 3.14 | 0.5 | 15 | 15 | 14.0 | 3.10 |
| Rack-1 x 3000 | 1 x 3000 | 3,000.23 | 955 | 3.14 | 0.5 | 15 | 15 | 14.0 | 4.90 |
| Rack-1,5 x 500 | 1,5 x 500 | 499.51 | 106 | 4.71 | 0.6 | 17 | 17 | 15.5 | 1.00 |
| Rack-1,5 x 1000 | 1,5 x 1000 | 1,003.74 | 213 | 4.71 | 0.6 | 17 | 17 | 15.5 | 2.00 |
| Rack-1,5 x 2000 | 1,5 x 2000 | 2,002.77 | 425 | 4.71 | 0.6 | 17 | 17 | 15.5 | 4.00 |
| Rack-1,5 x 3000 | 1,5 x 3000 | 3,001.80 | 637 | 4.71 | 0.6 | 17 | 17 | 15.5 | 6.10 |
| Rack-2 x 500 | 2 x 500 | 502.66 | 80 | 6.28 | 0.6 | 20 | 20 | 18.0 | 1.40 |
| Rack-2 x 1000 | 2 x 1000 | 1,005.31 | 160 | 6.28 | 0.6 | 20 | 20 | 18.0 | 2.70 |
| Rack-2 x 2000 | 2 x 2000 | 2,004.34 | 319 | 6.28 | 0.6 | 20 | 20 | 18.0 | 5.40 |
| Rack-2 x 3000 | 2 x 3000 | 3,003.37 | 478 | 6.28 | 0.6 | 20 | 20 | 18.0 | 8.40 |
| Rack-2,5 x 500 | 2,5 x 500 | 502.66 | 64 | 7.85 | 0.7 | 25 | 25 | 22.5 | 2.10 |
| Rack-2,5 x 1000 | 2,5 x 1000 | 1,005.31 | 128 | 7.85 | 0.7 | 25 | 25 | 22.5 | 4.30 |
| Rack-2,5 x 2000 | 2,5 x 2000 | 2,002.77 | 255 | 7.85 | 0.7 | 25 | 25 | 22.5 | 8.60 |
| Rack-2,5 x 3000 | 2,5 x 3000 | 3,000.23 | 382 | 7.85 | 0.7 | 25 | 25 | 22.5 | 11.90 |
| Rack-3 x 500 | 3 x 500 | 499.51 | 53 | 9.42 | 0.8 | 30 | 30 | 27.0 | 3.10 |
| Rack-3 x 1000 | 3 x 1000 | 1,008.45 | 107 | 9.42 | 0.8 | 30 | 30 | 27.0 | 6.30 |
| Rack-3 x 2000 | 3 x 2000 | 2,007.48 | 213 | 9.42 | 0.8 | 30 | 30 | 27.0 | 12.50 |
| Rack-3 x 3000 | 3 x 3000 | 3,006.51 | 319 | 9.42 | 0.8 | 30 | 30 | 27.0 | 18.60 |
| Rack-4 x 500 | 4 x 500 | 502.66 | 40 | 12.57 | 0.8 | 40 | 40 | 36.0 | 5.50 |
| Rack-4 x 1000 | 4 x 1000 | 1,005.31 | 80 | 12.57 | 0.8 | 40 | 40 | 36.0 | 11.10 |
| Rack-4 x 2000 | 4 x 2000 | 2,010.62 | 160 | 12.57 | 0.8 | 40 | 40 | 36.0 | 22.00 |
| Rack-4 x 3000 | 4 x 3000 | 3,003.37 | 239 | 12.57 | 0.8 | 40 | 40 | 36.0 | 31.30 |
| Rack-5 x 500 | 5 x 500 | 502.66 | 32 | 15.71 | 1.0 | 50 | 50 | 45.0 | 8.30 |
| Rack-5 x 1000 | 5 x 1000 | 1,005.31 | 64 | 15.71 | 1.0 | 50 | 50 | 45.0 | 17.50 |
| Rack-5 x 2000 | 5 x 2000 | 2,010.62 | 128 | 15.71 | 1.0 | 50 | 50 | 45.0 | 34.60 |
| Rack-5 x 3000 | 5 x 3000 | 3,000.23 | 191 | 15.71 | 1.0 | 50 | 50 | 45.0 | 45.30 |
| Rack-6 x 500 | 6 x 500 | 508.94 | 27 | 18.85 | 1.0 | 60 | 60 | 54.0 | 12.65 |
| Rack-6 x 1000 | 6 x 1000 | 1,017.88 | 54 | 18.85 | 1.0 | 60 | 60 | 54.0 | 25.00 |
| Rack-6 x 2000 | 6 x 2000 | 2,016.91 | 107 | 18.85 | 1.0 | 60 | 60 | 54.0 | 51.00 |
| Rack-8 x 500 | 8 x 500 | 502.66 | 20 | 25.13 | 1.0 | 80 | 80 | 72.0 | 22.40 |
| Rack-8 x 1000 | 8 x 1000 | 1,005.31 | 40 | 25.13 | 1.0 | 80 | 80 | 72.0 | 45.00 |
| Rack-8 x 2000 | 8 x 2000 | 2,010.62 | 80 | 25.13 | 1.0 | 80 | 80 | 72.0 | 90.00 |
