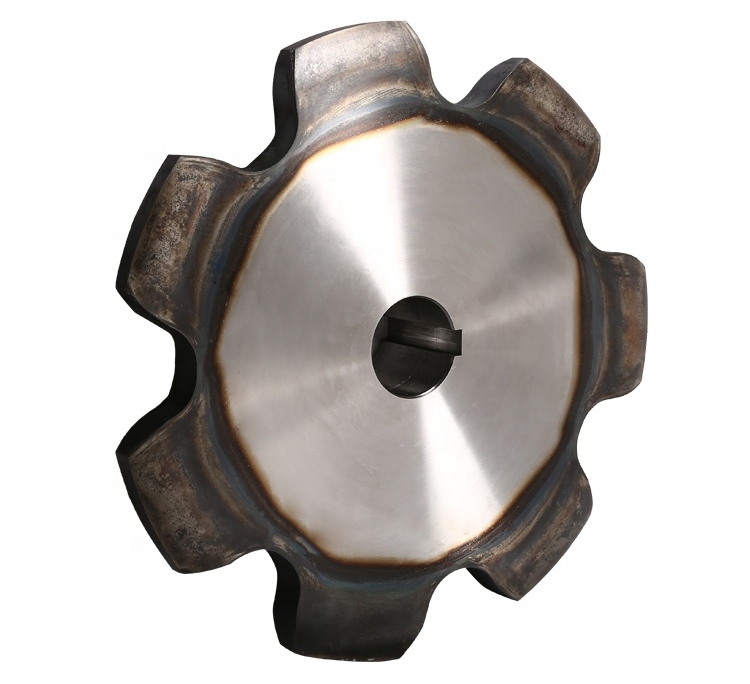

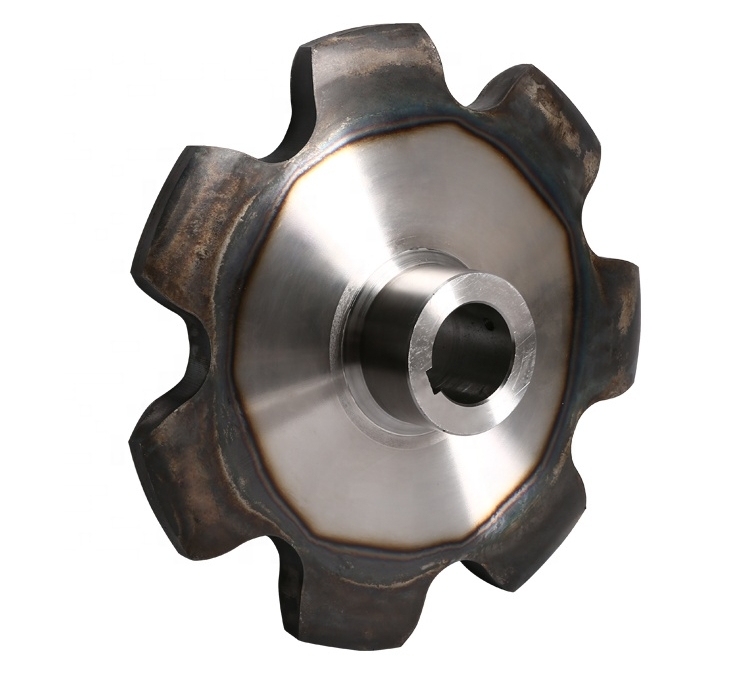

| Sprockets for agriculture chains type S62 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 41,91 mm | Z(T): Number of teeth | |||
| Width between inner plates: 26,20 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 19,05 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 22,6 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS62 | 83.82 | 99.00 | 6 | 60 | 50 | 15 |
| 7TS62 | 96.60 | 111.80 | 7 | 70 | 50 | 15 |
| 8TS62 | 109.46 | 124.60 | 8 | 75 | 60 | 20 |
| 9TS62 | 122.53 | 137.80 | 9 | 80 | 60 | 20 |
| 10TS62 | 135.62 | 150.90 | 10 | 80 | 60 | 20 |
| 11TS62 | 148.75 | 164.00 | 11 | 80 | 60 | 20 |
| 12TS62 | 161.92 | 177.20 | 12 | 80 | 60 | 20 |
| 13TS62 | 175.12 | 190.40 | 13 | 90 | 60 | 20 |
| 14TS62 | 188.33 | 203.60 | 14 | 90 | 60 | 20 |
| 15TS62 | 201.57 | 216.80 | 15 | 100 | 60 | 20 |
| 16TS62 | 214.82 | 230.10 | 16 | 110 | 65 | 20 |
| 17TS62 | 228.08 | 243.30 | 17 | 110 | 65 | 20 |
| 18TS62 | 241.35 | 256.60 | 18 | 110 | 65 | 20 |
| 20TS62 | 267.88 | 283.00 | 20 | 110 | 65 | 20 |
| 21TS62 | 281.17 | 296.30 | 21 | 110 | 65 | 20 |
| 27TS62 | 361.00 | 376.20 | 27 | 120 | 70 | 25 |
| 30TS62 | 400.95 | 416.20 | 30 | 130 | 70 | 25 |
| 34TS62 | 454.20 | 469.50 | 34 | 140 | 75 | 25 |
| 38TS62 | 507.48 | 522.60 | 38 | 140 | 75 | 25 |
