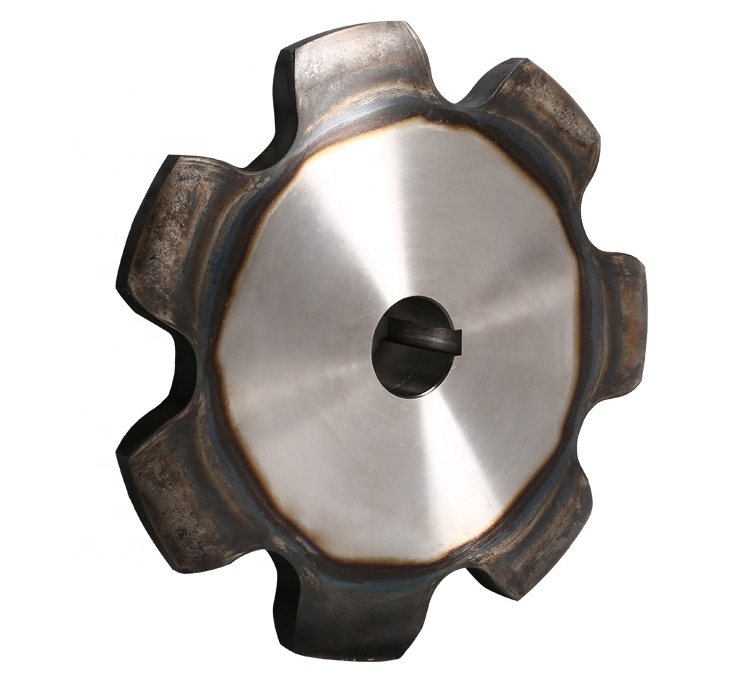

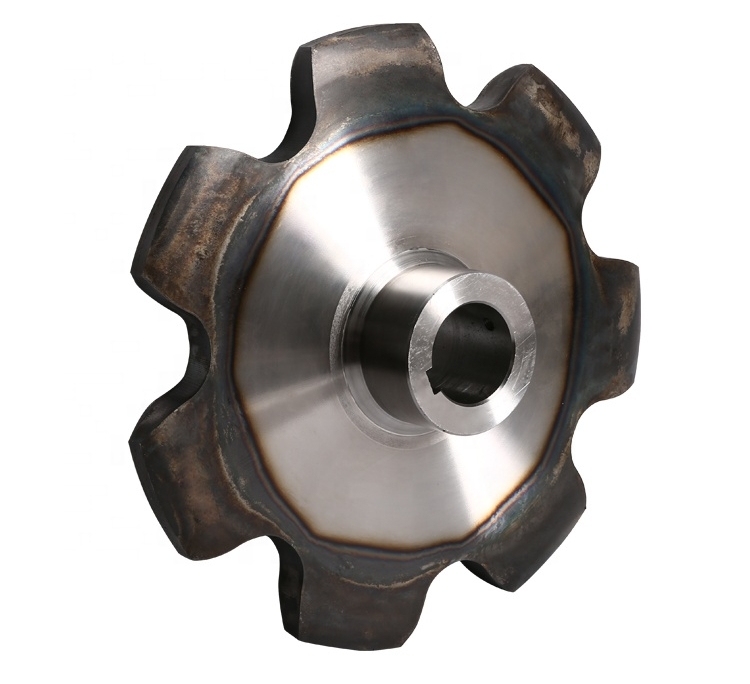

| Sprockets for agriculture chains type S55 R25 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 41,40 mm | Z(T): Number of teeth | |||
| Width between inner plates: 22,23 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 25,00 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 19,8 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS55 R25 | 82.80 | 102.80 | 6 | 55 | 45 | 15 |
| 7TS55 R25 | 95.42 | 115.42 | 7 | 65 | 45 | 15 |
| 8TS55 R25 | 108.13 | 128.13 | 8 | 70 | 50 | 15 |
| 9TS55 R25 | 121.04 | 141.04 | 9 | 80 | 55 | 20 |
| 10TS55 R25 | 133.97 | 153.97 | 10 | 80 | 55 | 20 |
| 11TS55 R25 | 146.94 | 166.94 | 11 | 90 | 55 | 20 |
| 12TS55 R25 | 159.95 | 179.95 | 12 | 90 | 55 | 20 |
| 13TS55 R25 | 172.99 | 192.99 | 13 | 90 | 55 | 20 |
| 14TS55 R25 | 186.04 | 206.04 | 14 | 90 | 55 | 20 |
| 15TS55 R25 | 199.12 | 219.12 | 15 | 90 | 55 | 20 |
| 16TS55 R25 | 212.20 | 232.20 | 16 | 100 | 60 | 20 |
| 17TS55 R25 | 225.30 | 245.30 | 17 | 100 | 60 | 20 |
| 18TS55 R25 | 238.41 | 258.41 | 18 | 100 | 60 | 20 |
| 20TS55 R25 | 264.20 | 284.20 | 20 | 100 | 60 | 20 |
| 21TS55 R25 | 277.75 | 297.75 | 21 | 100 | 60 | 20 |
| 27TS55 R25 | 356.61 | 376.61 | 27 | 110 | 65 | 25 |
| 30TS55 R25 | 396.06 | 416.06 | 30 | 110 | 65 | 25 |
| 34TS55 R25 | 448.69 | 468.69 | 34 | 120 | 70 | 25 |
| 38TS55 R25 | 501.31 | 521.31 | 38 | 120 | 70 | 25 |
