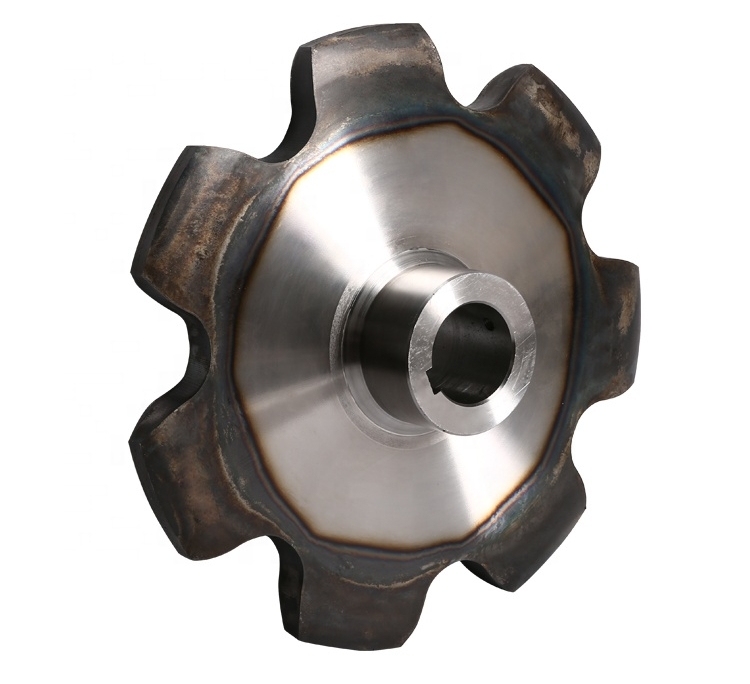

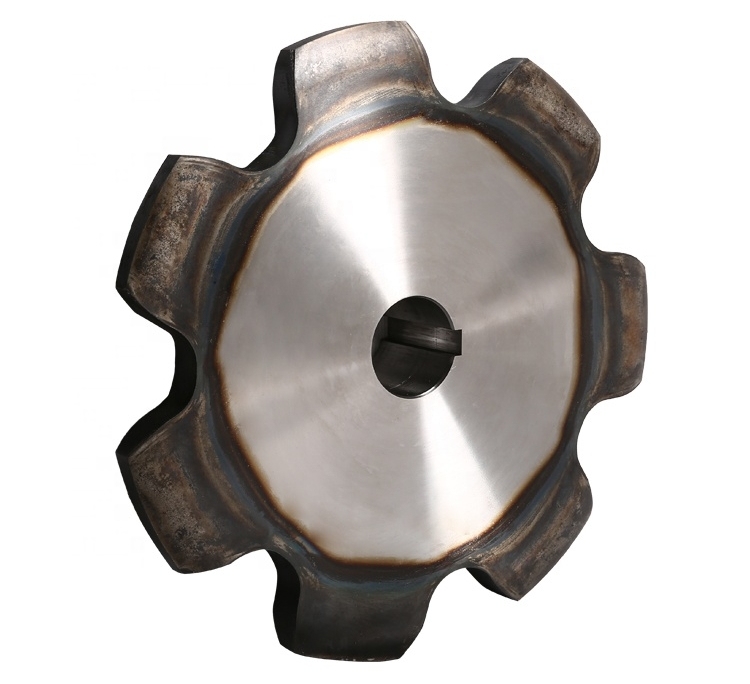

| Sprockets for agriculture chains type S55 | ||||

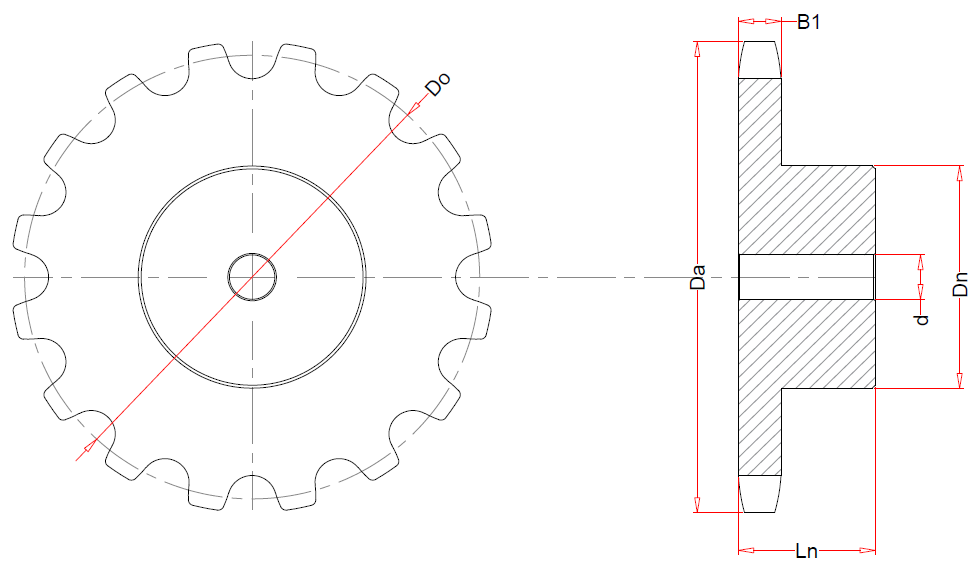

| Chain Data | Sprocket Data | |||
| Pitch: 41,40 mm | Z(T): Number of teeth | |||
| Width between inner plates: 22,23 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 17,78 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 19,8 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS55 | 82.80 | 97.00 | 6 | 55 | 45 | 15 |
| 7TS55 | 95.42 | 109.60 | 7 | 65 | 45 | 15 |
| 8TS55 | 108.13 | 122.30 | 8 | 70 | 50 | 15 |
| 9TS55 | 121.04 | 135.30 | 9 | 80 | 55 | 20 |
| 10TS55 | 133.97 | 148.20 | 10 | 80 | 55 | 20 |
| 11TS55 | 146.94 | 161.20 | 11 | 90 | 55 | 20 |
| 12TS55 | 159.95 | 174.20 | 12 | 90 | 55 | 20 |
| 13TS55 | 172.99 | 187.20 | 13 | 90 | 55 | 20 |
| 14TS55 | 186.04 | 200.30 | 14 | 90 | 55 | 20 |
| 15TS55 | 199.12 | 213.40 | 15 | 90 | 55 | 20 |
| 16TS55 | 212.20 | 226.40 | 16 | 100 | 60 | 20 |
| 17TS55 | 225.30 | 239.50 | 17 | 100 | 60 | 20 |
| 18TS55 | 238.41 | 252.60 | 18 | 100 | 60 | 20 |
| 20TS55 | 264.62 | 278.80 | 20 | 100 | 60 | 20 |
| 21TS55 | 277.75 | 291.90 | 21 | 100 | 60 | 20 |
| 27TS55 | 256.61 | 370.80 | 27 | 110 | 65 | 25 |
| 30TS55 | 396.06 | 410.30 | 30 | 110 | 65 | 25 |
| 34TS55 | 448.69 | 462.90 | 34 | 120 | 70 | 25 |
| 38TS55 | 501.31 | 515.50 | 38 | 120 | 70 | 25 |
