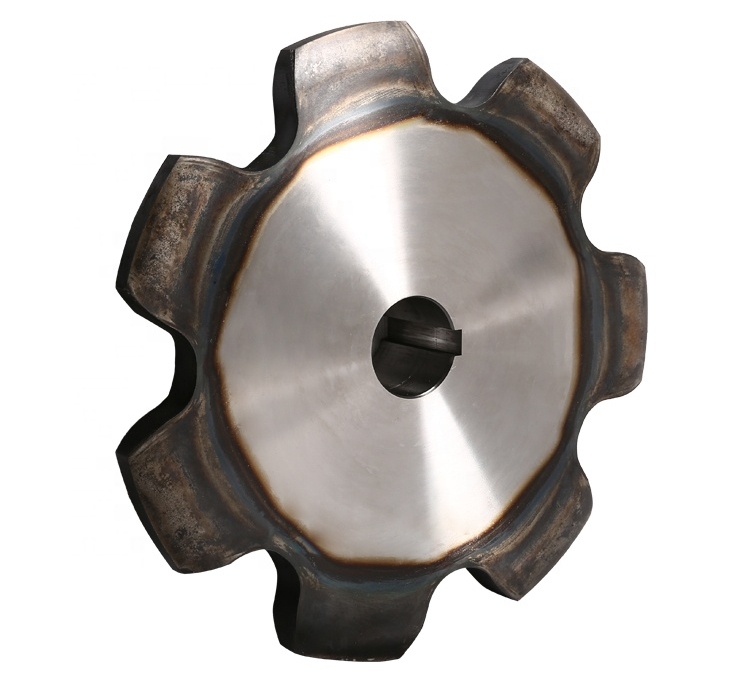

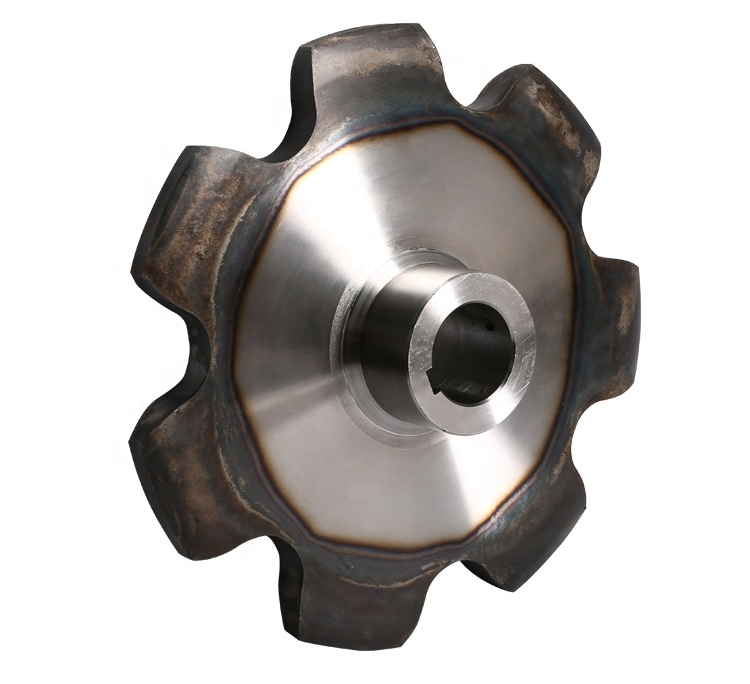

| Chain Data | Sprocket Data | |||
| Pitch: 34,93 mm | Z(T): Number of teeth | |||
| Width between inner plates: 19,05 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 14,27 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 16,8 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS42 | 69.86 | 81.20 | 6 | 50 | 40 | 15 |
| 7TS42 | 80.51 | 91.90 | 7 | 65 | 45 | 15 |
| 8TS42 | 91.23 | 102.60 | 8 | 65 | 45 | 15 |
| 9TS42 | 102.12 | 113.50 | 9 | 70 | 45 | 15 |
| 10TS42 | 113.03 | 124.40 | 10 | 70 | 45 | 15 |
| 11TS42 | 123.98 | 135.40 | 11 | 70 | 45 | 15 |
| 12TS42 | 134.95 | 146.40 | 12 | 70 | 45 | 15 |
| 13TS42 | 145.95 | 157.40 | 13 | 70 | 45 | 20 |
| 14TS42 | 156.97 | 168.40 | 14 | 70 | 45 | 20 |
| 15TS42 | 168.00 | 179.40 | 15 | 75 | 50 | 20 |
| 16TS42 | 179.04 | 190.40 | 16 | 75 | 50 | 20 |
| 17TS42 | 190.08 | 201.50 | 17 | 75 | 50 | 20 |
| 18TS42 | 201.15 | 212.60 | 18 | 80 | 50 | 20 |
| 20TS42 | 223.27 | 234.60 | 20 | 80 | 50 | 20 |
| 21TS42 | 234.00 | 245.70 | 21 | 80 | 50 | 20 |
| 27TS42 | 300.88 | 312.40 | 27 | 90 | 55 | 20 |
| 30TS42 | 334.16 | 345.60 | 30 | 100 | 55 | 20 |
| 34TS42 | 378.57 | 390.00 | 34 | 100 | 55 | 20 |
| 38TS42 | 422.96 | 434.30 | 38 | 100 | 55 | 20 |
