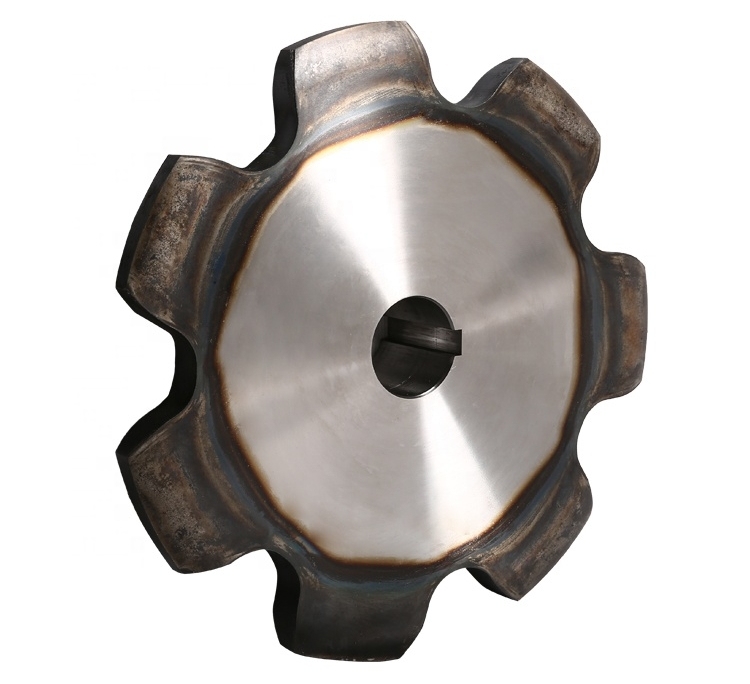

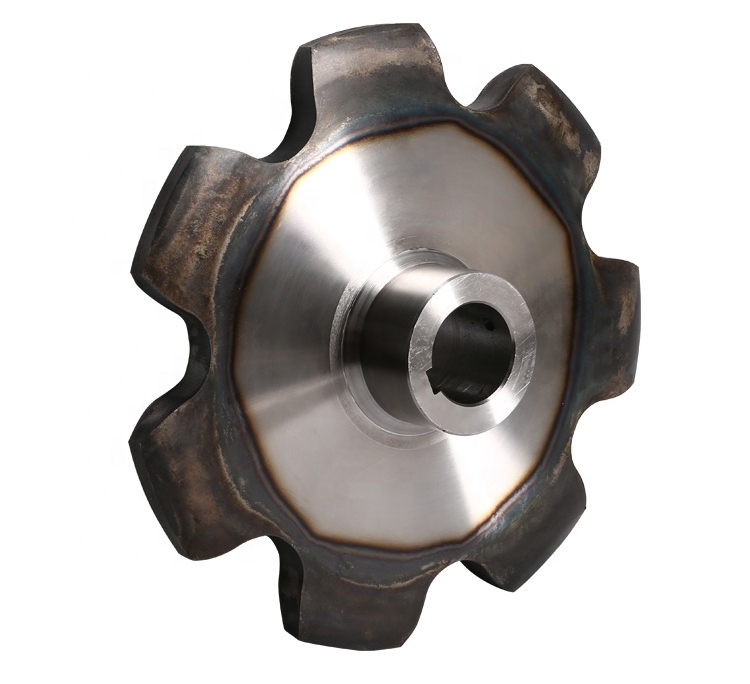

| Sprockets for agriculture chains type CA557 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 41.40 mm | Z(T): Number of teeth | |||
| Width between inner plates: 20.24 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 17.78 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 18,0 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TCA557 | 82.80 | 101.10 | 6 | 55 | 45 | 15 |
| 7TCA557 | 95.42 | 113.71 | 7 | 65 | 45 | 15 |
| 8TCA557 | 108.18 | 127.69 | 8 | 70 | 50 | 15 |
| 9TCA557 | 121.05 | 141.48 | 9 | 80 | 55 | 20 |
| 10TCA557 | 133.97 | 152.26 | 10 | 80 | 55 | 20 |
| 11TCA557 | 146.95 | 165.84 | 11 | 90 | 55 | 20 |
| 12TCA557 | 159.96 | 179.35 | 12 | 90 | 55 | 20 |
| 13TCA557 | 172.99 | 192.81 | 13 | 90 | 55 | 20 |
| 14TCA557 | 186.05 | 206.23 | 14 | 90 | 55 | 20 |
| 15TCA557 | 199.12 | 217.96 | 15 | 90 | 55 | 20 |
| 16TCA557 | 212.21 | 231.32 | 16 | 100 | 60 | 20 |
| 17TCA557 | 225.31 | 244.65 | 17 | 100 | 60 | 20 |
| 18TCA557 | 238.41 | 257.98 | 18 | 100 | 60 | 20 |
| 20TCA557 | 264.65 | 282.09 | 20 | 100 | 60 | 20 |
| 21TCA557 | 277.77 | 295.37 | 21 | 100 | 60 | 20 |
| 27TCA557 | 356.61 | 374.90 | 27 | 110 | 65 | 25 |
| 30TCA557 | 396.06 | 414.59 | 30 | 110 | 65 | 25 |
| 34TCA557 | 448.69 | 467.48 | 34 | 120 | 70 | 25 |
| 38TCA557 | 501.34 | 520.32 | 38 | 120 | 70 | 25 |
