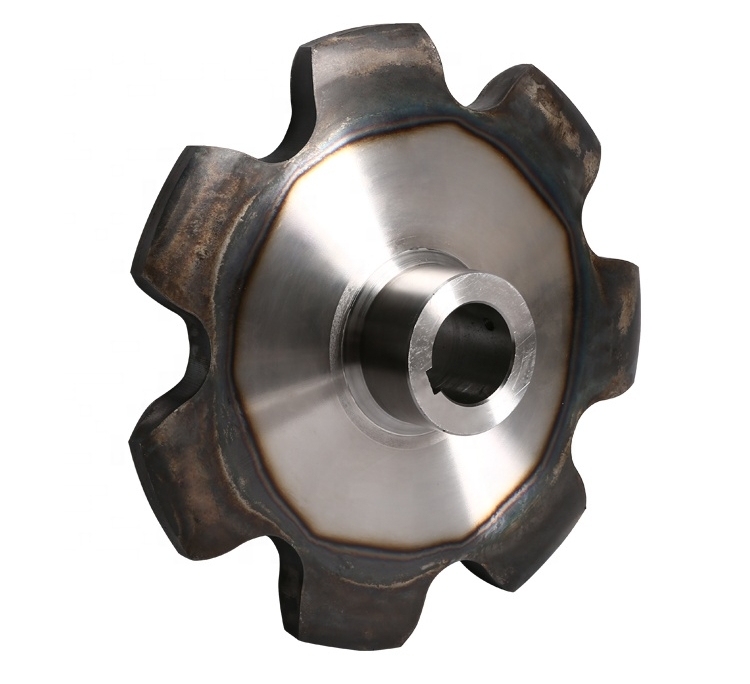

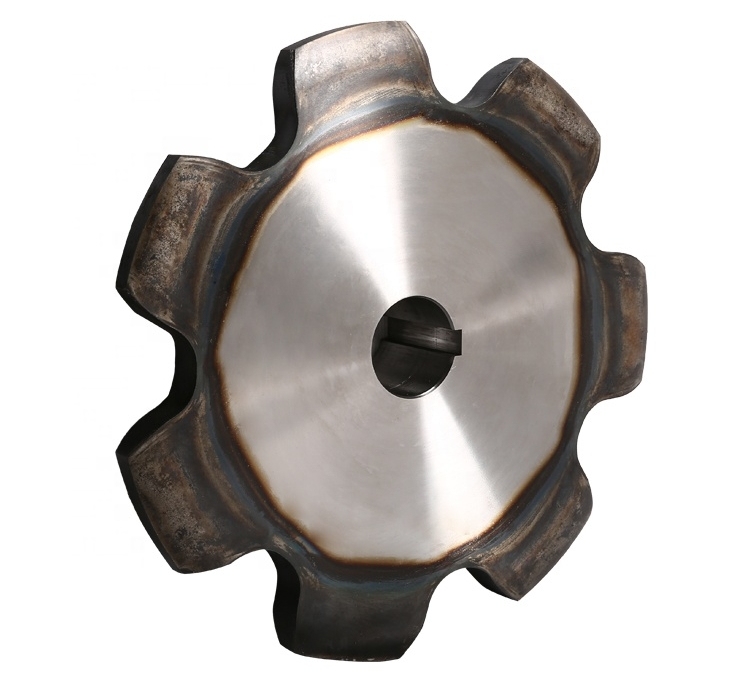

| Sprockets for agriculture chains type CA555 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 41.40 mm | Z(T): Number of teeth | |||
| Width between inner plates: 12.70 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 16.87 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 11,5 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TCA555 | 82.80 | 101.10 | 6 | 55 | 45 | 15 |
| 7TCA555 | 95.42 | 112.88 | 7 | 65 | 45 | 15 |
| 8TCA555 | 108.18 | 125.62 | 8 | 70 | 50 | 15 |
| 9TCA555 | 121.05 | 139.41 | 9 | 80 | 55 | 20 |
| 10TCA555 | 133.97 | 153.08 | 10 | 80 | 55 | 20 |
| 11TCA555 | 146.95 | 166.66 | 11 | 90 | 55 | 20 |
| 12TCA555 | 159.96 | 177.28 | 12 | 90 | 55 | 20 |
| 13TCA555 | 172.99 | 190.74 | 13 | 90 | 55 | 20 |
| 14TCA555 | 186.05 | 204.16 | 14 | 90 | 55 | 20 |
| 15TCA555 | 199.12 | 217.54 | 15 | 90 | 55 | 20 |
| 16TCA555 | 212.21 | 230.90 | 16 | 100 | 60 | 20 |
| 17TCA555 | 225.31 | 244.24 | 17 | 100 | 60 | 20 |
| 18TCA555 | 238.41 | 257.56 | 18 | 100 | 60 | 20 |
| 20TCA555 | 264.65 | 282.09 | 20 | 100 | 60 | 20 |
| 21TCA555 | 277.77 | 295.37 | 21 | 100 | 60 | 20 |
| 27TCA555 | 356.61 | 374.90 | 27 | 110 | 65 | 25 |
| 30TCA555 | 396.06 | 414.59 | 30 | 110 | 65 | 25 |
| 34TCA555 | 448.69 | 467.48 | 34 | 120 | 70 | 25 |
| 38TCA555 | 501.34 | 520.32 | 38 | 120 | 70 | 25 |
