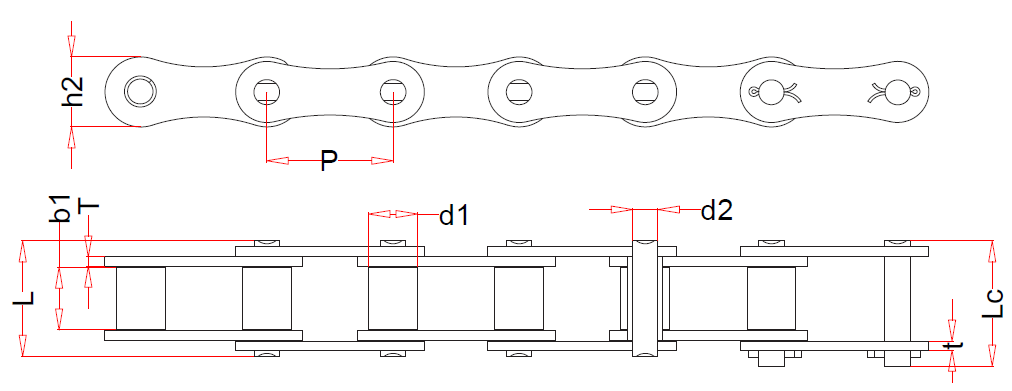

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth |
Plate thickness | Ultimate tensile strength | Weight per meter |
|||
| P | d1 max | b1 min | d2 max | L | Lc max | h2 max | t/T max | Q min | q | |||
| mm | mm | mm | mm | mm | mm | mm | kN | lbf | kg/m | |||
| P41.3 | 41.3 | 16.00 | 21.40 | 8.28 | 39.0 | 42.0 | 23.5 | 3.1 | 50.00 | 11363 | 2.27 | |
