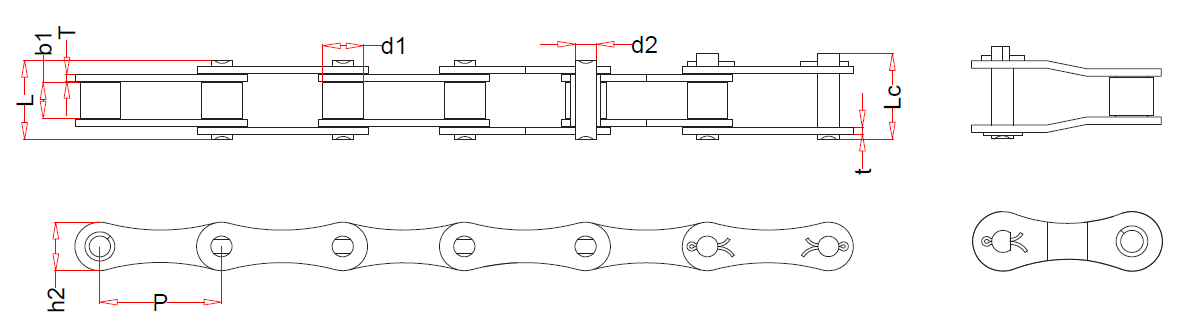

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth |
Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN | lbf | kN | kg/m | ||
| CA620F4 | 42.01 | 19.05 | 27.90 | 10.19 | 44.9 | 46.5 | 25.0 | 3.0 | 45 | 10277 | 60.0 | 2.95 |
| CA642 | 41.40 | 15.88 | 19.00 | 8.28 | 36.1 | 39.1 | 21.2 | 3.0 | 50 | 11363 | 55.0 | 1.98 |
| CA650 | 50.80 | 25.00 | 18.90 | 9.53 | 40.4 | 44.7 | 25.0 | 4.0 | 90 | 20454 | 95.5 | 3.49 |
| CA650F2 | 50.80 | 20.00 | 18.90 | 9.53 | 40.4 | 44.7 | 25.0 | 4.0 | 90 | 20454 | 95.5 | 2.98 |
| CA650F4 | 50.80 | 19.05 | 19.05 | 5.93 | 40.4 | 44.7 | 25.0 | 4.0 | 90 | 20454 | 95.5 | 2.85 |
