Home > All Collections > Metric Conveyor Chain & Sprocket > Metric Conveyor Chain (DIN 8167) > MC Series__Hollow Pin
  • MC Series__Hollow Pin
  • MC Series__Hollow Pin

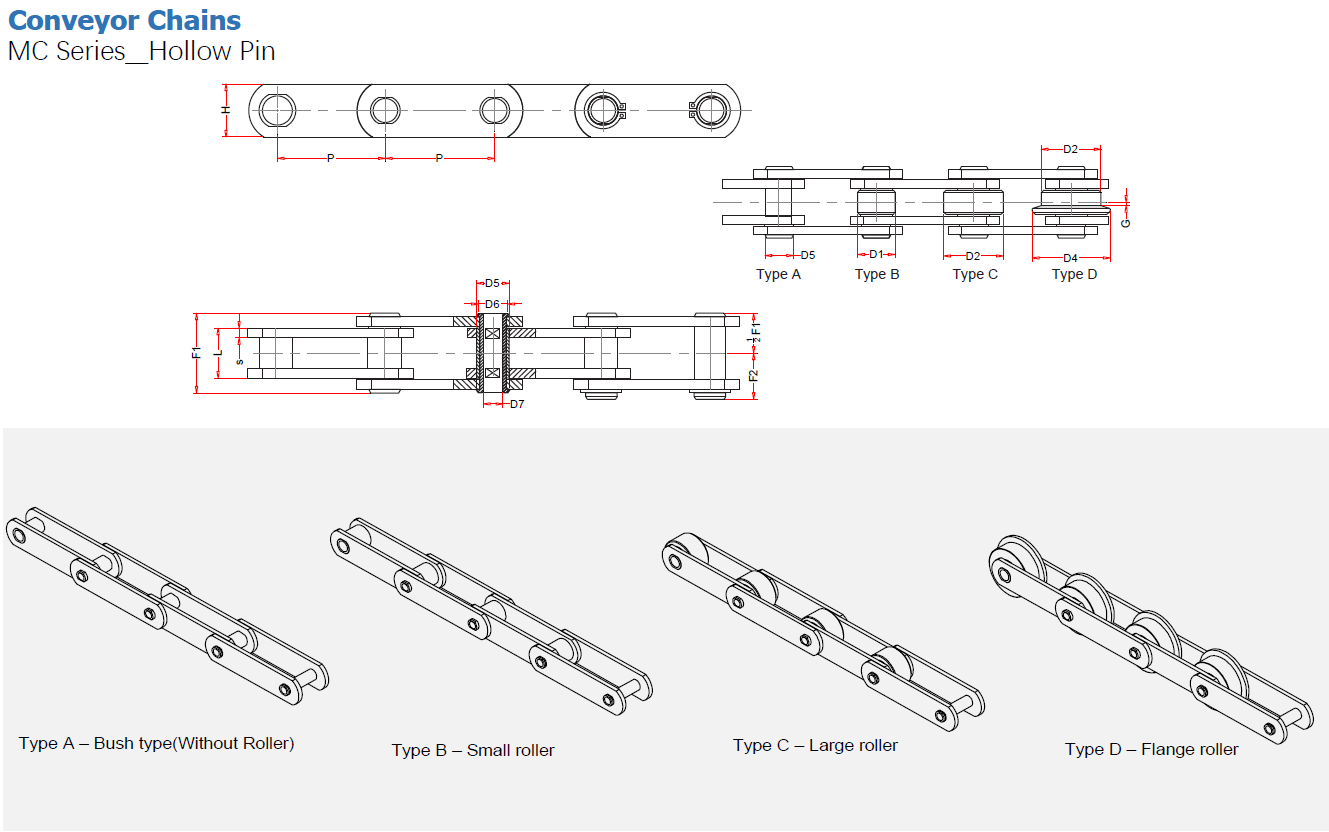

MC Series__Hollow Pin

Metric conveyor chains are those that are manufactured by ISO and DIN standards. We supply M-series, MC series (hollow pin), FV series, FVC series (hollow pin), and custom-made to-order metric conveyor chains.
GET A QUOTE
  • MC Series__Hollow Pin

Description

Metric Conveyor Chain (DIN 8167)
Chain number Pitch P L G H S F1 F2 D1 D2 D4 D5 D6 D7 Breaking Load kN HT
Breaking Load, kN		 Weight (Type C) kg/m
MC 28 50 20 4.5 25 3 36.0 20.5 25 36 45 17 13.0 8.2 28 40 4.3
“ 63 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 3.8
“ 80 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 3.2
“ 100 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 2.8
“ 125 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 2.5
MC 56 63 24 7.0 35 4 45.0 25.0 30 50 60 21 15.5 10.2 56 90 8.5
“ 80 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 7.2
“ 100 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 6.2
“ 125 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 5.4
“ 160 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 4.7
MC 112 80 32 8.5 50 6 62.5 33.0 42 70 85 29 22.0 14.3 112 180 16.6
“ 100 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 14.0
“ 125 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 11.2
“ 160 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 10.2
“ 200 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 8.9
“ 250 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 7.9
MC 224 125 43 10.5 70 8 83.0 44.0 60 100 120 42 30.0 20.3 224 350 32.3
“ 160 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 27.1
“ 200 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 23.5
“ 250 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 20.6
“ 315 “ “ “ “ “ “ “ “ “ “ “ “ “ “ 17.2
