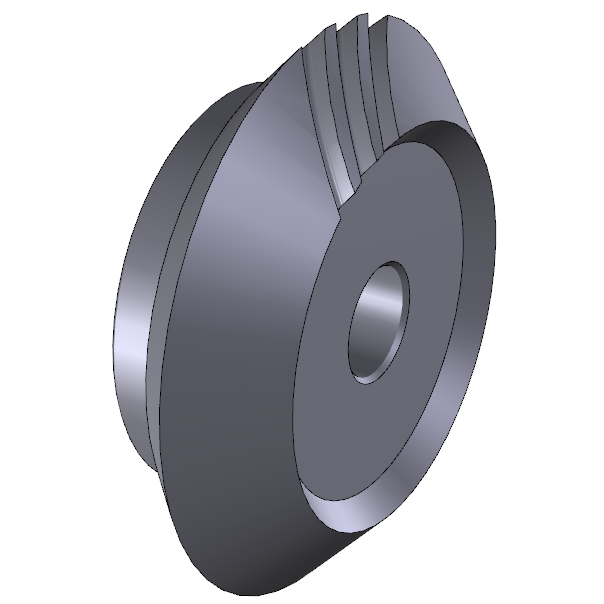

CONICAL SPIRAL-TOOTHED GEARS
RATIO 1:4
Pressure angle 20°
Material C45E
UNI EN 10083-1
Minor Gear With Left Spiral
Greater Gear With Right Spiral

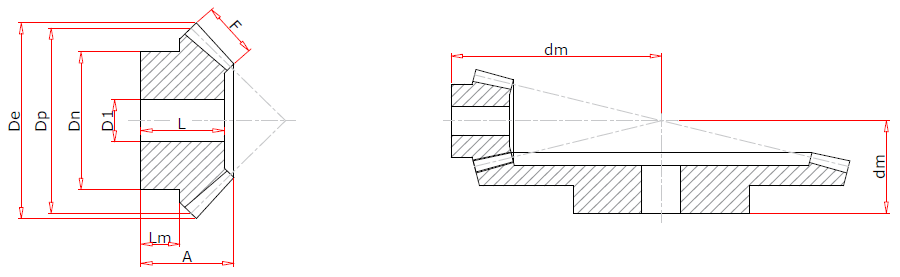

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 2 |
16 |
36.7 |
32 |
24 |
15 |
25 |
12 |
73 |
23 |
8.2 |
| 2 |
64 |
128.5 |
128 |
27.3 |
15 |
70 |
20 |
39 |
23 |
14 |
| 2.5 |
16 |
45.9 |
40 |
31 |
18 |
34 |
15 |
93 |
29 |
12.2 |
| 2.5 |
64 |
160.6 |
160 |
34.2 |
18 |
80 |
20 |
49 |
29 |
16 |
| 3 |
16 |
55.1 |
48 |
32.1 |
20 |
40 |
15 |
108 |
30 |
11 |
| 3 |
64 |
192.7 |
192 |
40.9 |
20 |
90 |
20 |
59 |
35 |
22 |
|
|
|
|
|
|
