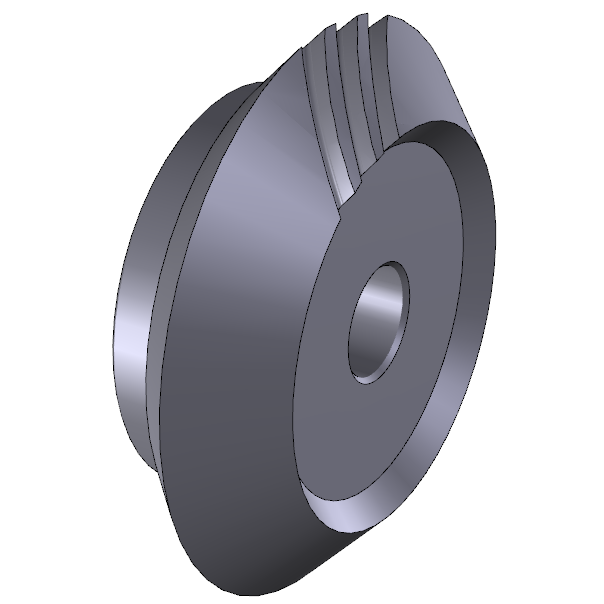

CONICAL SPIRAL-TOOTHED GEARS
RATIO 1:2
Pressure angle 20°
Material C45E
UNI EN 10083-1
Minor Gear With Left Spiral
Greater Gear With Right Spiral

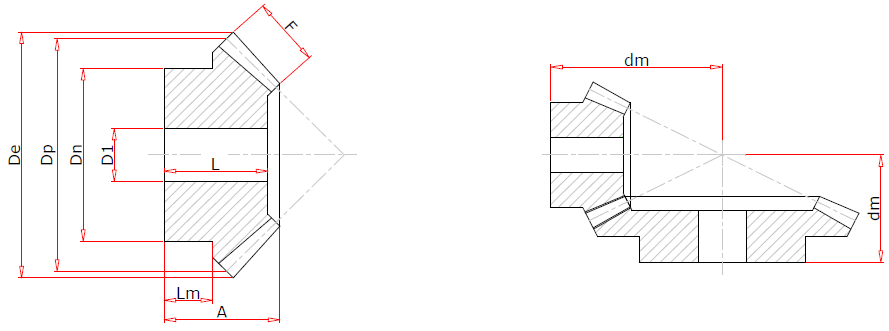

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 2 |
16 |
36.1 |
32 |
22.6 |
10 |
27 |
10 |
45 |
21 |
11.7 |
| 2 |
32 |
65 |
64 |
24.1 |
10 |
40 |
12 |
35 |
21.5 |
10 |
| 2.5 |
16 |
45.1 |
40 |
27.6 |
12 |
34 |
12 |
56 |
25.5 |
14.5 |
| 2.5 |
32 |
81.2 |
80 |
29.2 |
12 |
50 |
15 |
43 |
25.5 |
15 |
| 3 |
16 |
54.1 |
48 |
28.4 |
15 |
40 |
15 |
62 |
25.5 |
12 |
| 3 |
32 |
97.5 |
96 |
34.6 |
15 |
60 |
15 |
51 |
30 |
15 |
| 3.5 |
16 |
63.2 |
56 |
33.3 |
18 |
48 |
15 |
72 |
30.5 |
14 |
| 3.5 |
32 |
113.7 |
112 |
39.1 |
18 |
70 |
20 |
58 |
34 |
19 |
| 4 |
16 |
72.2 |
64 |
36.3 |
20 |
50 |
20 |
81 |
32.5 |
13.5 |
| 4 |
32 |
130 |
128 |
44.2 |
20 |
80 |
20 |
66 |
38.5 |
23 |
| 4.5 |
16 |
81.2 |
72 |
40.2 |
22 |
60 |
20 |
91 |
35.5 |
16 |
| 4.5 |
32 |
146.2 |
144 |
49.3 |
22 |
80 |
25 |
74 |
42.5 |
24 |
| 5 |
16 |
90.2 |
80 |
50.1 |
25 |
60 |
20 |
106 |
45.5 |
21 |
| 5 |
32 |
162.5 |
160 |
53.7 |
25 |
85 |
25 |
81 |
46.5 |
27 |
|
|
|
|
|
|
