8M 30

GET A QUOTE

Description

Timing Pulley |5M/8M/14M|Taper Bore

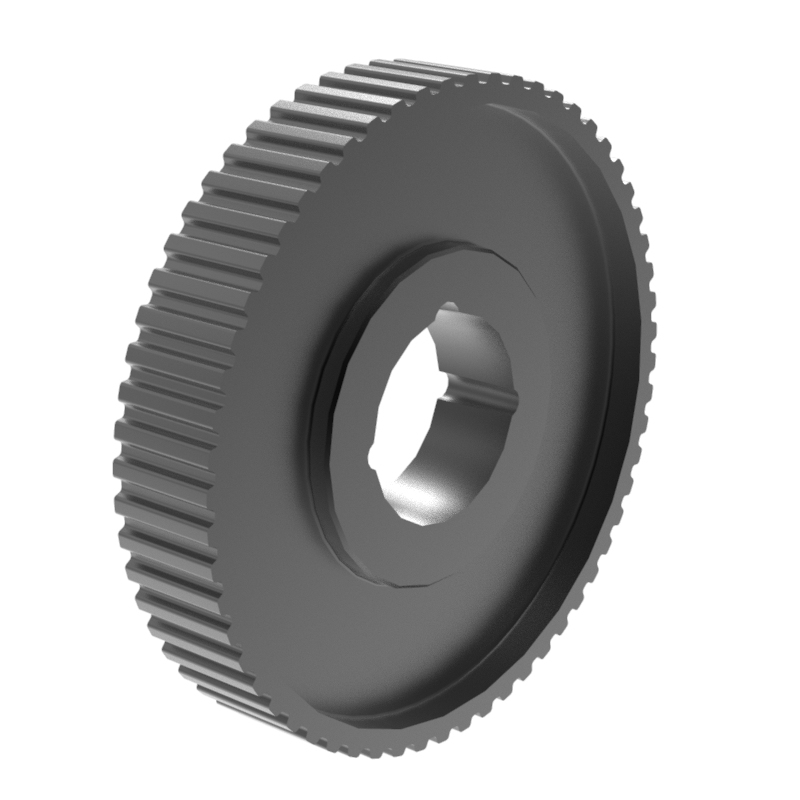

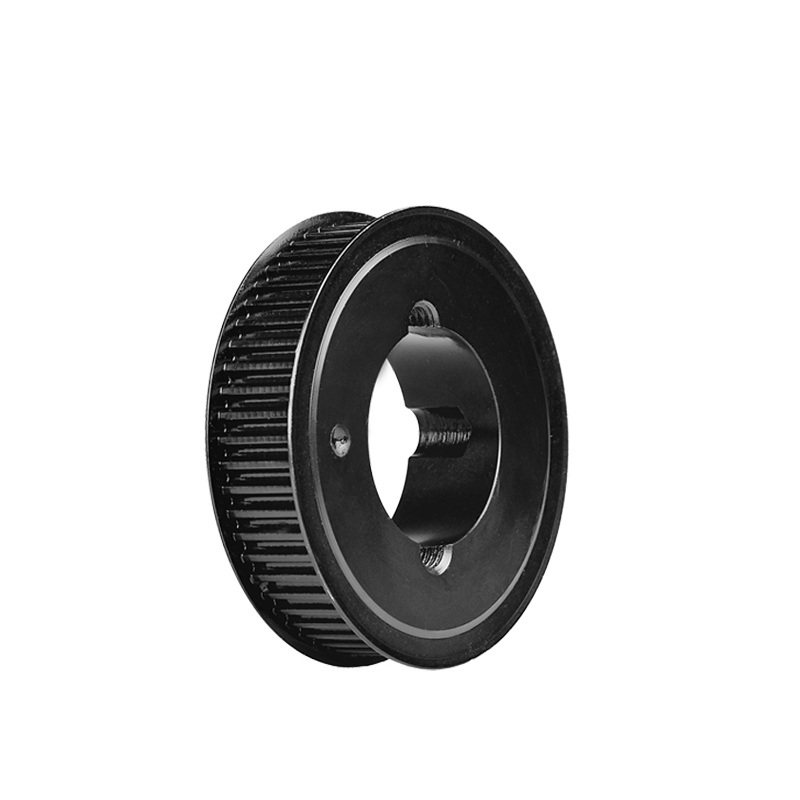

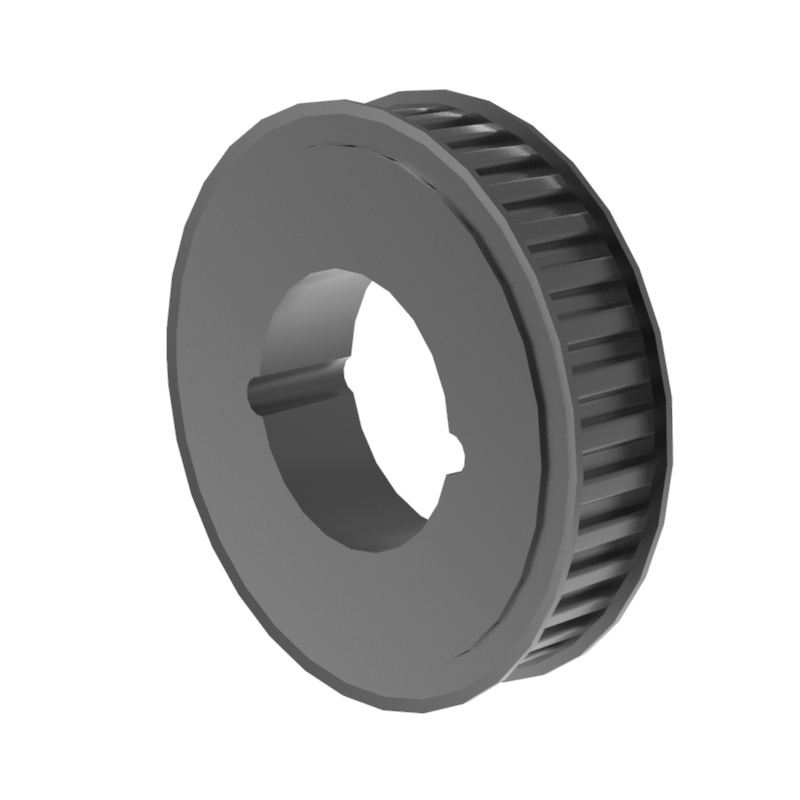

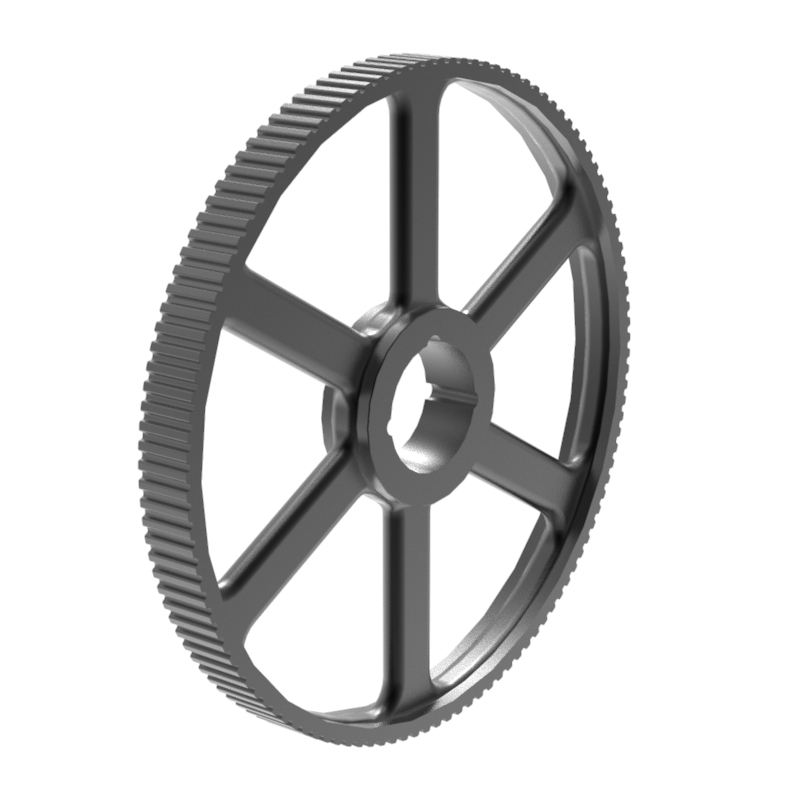

8M 30
Pitch: 8 mm
FOR 30 mm WIDTH BELTS

Catalog No.	Type	Material	Teeth	Bush No.	Bore max	Pitch Dia	Outer Dia	Flange Dia	Hub Dia		Tooth width	Total length			Mass per pc
					Bore max	dp	de	Df	Dm	Di	F	L	R	n ° flange	(q≈)
					mm	mm	mm	mm	mm	mm	mm	mm	mm	°	kg/pc
TL 22 8M 30	16F	St	22	1008	25	56.02	54.65	60		37	38	22	16	308	0.33
TL 24 8M 30	16F	St	24	1108	25	61.11	59.74	66		44	38	22	16	310	0.40
TL 26 8M 30	16F	St	26	1108	25	66.21	64.84	71		44	38	22	16	311	0.45
TL 28 8M 30	16F	St	28	1210	32	71.30	70.08	75		50	38	25	13	312	0.50
TL 30 8M 30	15F	St	30	1615	42	76.39	75.13	83			38	38		314	0.55
TL 32 8M 30	15F	St	32	1615	42	81.49	80.16	87			38	38		315	0.60
TL 34 8M 30	15F	St	34	1615	42	86.58	85.21	91			38	38		316	0.80
TL 36 8M 30	15F	St	36	1615	42	91.67	90.30	98			38	38		319	1.00
TL 38 8M 30	15F	St	38	1615	42	96.77	95.39	103			38	38		320	1.10
TL 40 8M 30	15F	St	40	1615	42	101.86	100.49	106			38	38		321	1.34
TL 44 8M 30	18F	St	44	2012	50	112.05	110.67	119		86	38	32	3	325	1.30
TL 48 8M 30	18F	St	48	2012	50	122.23	120.86	127		90	38	32	3	327	1.80
TL 56 8M 30	18F	St	56	2012	50	142.60	141.23	148		110	38	32	3	333	3.80
TL 64 8M 30	10F	St	64	2517	60	162.97	161.60	168	125		38	45	7	338	4.30
TL 72 8M 30	11F	St	72	2517	60	183.35	181.97	192	125	158	38	45	7	340	4.40
TL 80 8M 30	11	GG	80	2517	60	203.72	202.35		125	180	38	45	7		4.65
TL 90 8M 30	11	GG	90	2517	60	229.18	227.81		125	204	38	45	7		5.80
TL 112 8M 30	12	GG	112	2517	60	285.21	283.83		125	254	38	45	7		6.20
TL 144 8M 30	12	GG	144	2517	60	366.69	365.32		125	336	38	45	7		9.00
