10B-1B&2B&3B

Name: 10B-1B&2B&3B
Brand: CORF TECHNOLOGY
Rating: 5 (1 reviews)

10B | 5/8" x 3/8" | 15,875 x 9,65 mm | Roller 10,16 mm

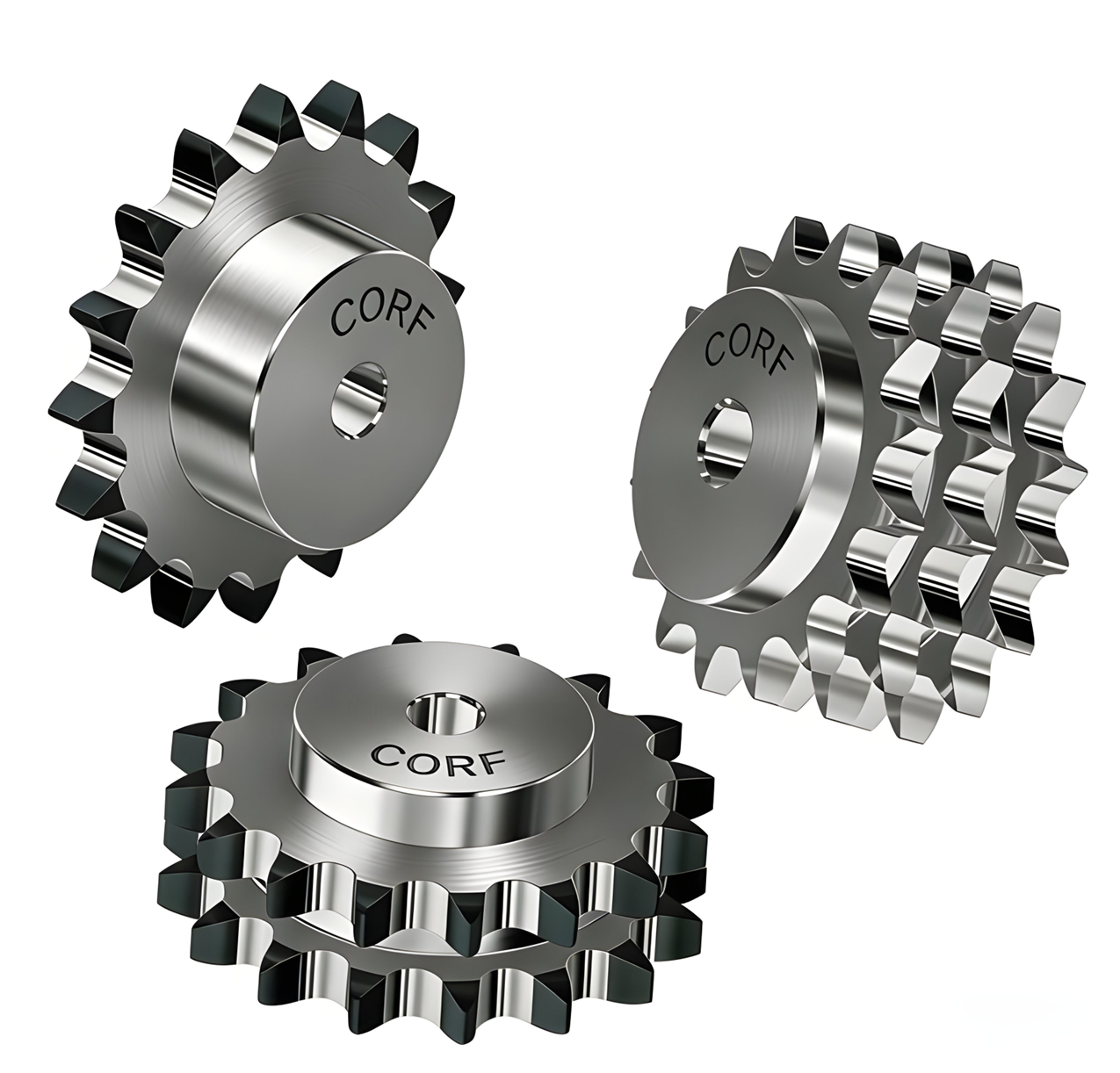

CORF sprockets (Type B & Type C) with pilot bore meet strict European (EN) standards for precision, durability, and alignment in industrial power transmission, conveyors, and machinery. Customizable, premium-built, and quality-checked for reliable performance.

Features

Hub Extensions: Type B (hub extension – one side) / Type C (hub extension – both sides) for varied load/space needs.
Customizable: Client-approved drawings; fits multi-standards (ANSI, DIN, JIS, BS, SATI/MARTIN).
Materials: Steels (C45, SS304/316, 40Cr), engineering plastics (POM, PA6), brass, cast iron—matched to your application.

Durability: Advanced heat treatment (hardened teeth, carburizing) + surface finishes (black oxide, nickel plating) for wear/corrosion resistance.
Quality: 100% inspection at every stage ensures reliability.

GET A QUOTE

Description

Tooth width B1	9,1
Tooth width B2	25,5
Tooth width B3	42,1
Tooth width b1	9
Radius width C	1,6
Tooth radius r3	16

z	de	dp	Simplex					Duplex					Triplex
z	de	dp	CORF Code	dm	D1	A	kg/pc	CORF Code	dm	D2	A	kg/pc	CORF Code	dm	D3	A	kg/pc
8	48.4	41.48	10B1Z8	25	10	25	0.12	10B2Z8	25	12	40	0.19	10B3Z8	25	12	55	0.27
9	53.3	46.42	10B1Z9	30	10	25	0.16	10B2Z9	30	12	40	0.27	10B3Z9	30	12	55	0.38
10	58.3	51.37	10B1Z10	35	10	25	0.22	10B2Z10	35	12	40	0.36	10B3Z10	35	16	55	0.47
11	63.2	56.34	10B1Z11	37	12	30	0.29	10B2Z11	39	16	40	0.43	10B3Z11	39	16	55	0.61
12	68.2	61.34	10B1Z12	42	12	30	0.37	10B2Z12	44	16	40	0.55	10B3Z12	44	16	55	0.78
13	73.2	66.32	10B1Z13	47	12	30	0.46	10B2Z13	49	16	40	0.68	10B3Z13	49	16	55	0.96
14	78.2	71.34	10B1Z14	52	12	30	0.56	10B2Z14	54	16	40	0.82	10B3Z14	54	16	55	1.15
15	83.2	76.36	10B1Z15	57	12	30	0.67	10B2Z15	59	16	40	0.97	10B3Z15	59	16	55	1.37
16	88.3	81.37	10B1Z16	60	12	30	0.76	10B2Z16	64	16	45	1.26	10B3Z16	64	16	60	1.72
17	93.3	86.39	10B1Z17	60	12	30	0.88	10B2Z17	69	16	45	1.46	10B3Z17	69	16	60	1.99
18	98.3	91.42	10B1Z18	70	14	30	1.01	10B2Z18	74	16	45	1.67	10B3Z18	74	16	60	2.27
19	103.3	96.45	10B1Z19	70	14	30	1.15	10B2Z19	79	16	45	1.90	10B3Z19	79	16	60	2.58
20	108.4	101.49	10B1Z20	75	14	30	1.21	10B2Z20	84	16	45	2.14	10B3Z20	84	16	60	2.91
21	113.4	106.52	10B1Z21	75	16	30	1.35	10B2Z21	85	16	45	2.27	10B3Z21	85	20	60	3.12
22	118.4	111.55	10B1Z22	80	16	30	1.41	10B2Z22	90	16	45	2.54	10B3Z22	90	20	60	3.48
23	123.5	116.58	10B1Z23	80	16	30	1.47	10B2Z23	95	16	45	2.82	10B3Z23	95	20	60	3.86
24	128.5	121.62	10B1Z24	80	16	30	1.54	10B2Z24	100	16	45	3.11	10B3Z24	100	20	60	4.25
25	133.6	126.66	10B1Z25	80	16	30	1.60	10B2Z25	105	16	45	3.15	10B3Z25	105	20	60	4.67
26	138.6	131.70	10B1Z26	85	20	35	1.96	10B2Z26	110	20	45	3.74	10B3Z26	110	20	60	5.10
27	143.6	136.75	10B1Z27	85	20	35	2.04	10B2Z27	110	20	45	3.94	10B3Z27	110	20	60	5.43
28	148.7	141.78	10B1Z28	90	20	35	2.25	10B2Z28	115	20	45	4.28	10B3Z28	115	20	60	5.90
29	153.7	146.83	10B1Z29	90	20	35	2.33	10B2Z29	115	20	45	4.50	10B3Z29	115	20	60	6.25
30	158.8	151.87	10B1Z30	90	20	35	2.41	10B2Z30	120	20	45	4.87	10B3Z30	120	20	60	6.65
31	163.8	156.92	10B1Z31	95	20	35	2.64	10B2Z31	120	20	45	5.10	10B3Z31	120	20	60	7.18
32	168.9	161.95	10B1Z32	95	20	35	2.73	10B2Z32	120	20	45	5.34	10B3Z32	120	20	60	7.56
33	173.9	167.00	10B1Z33	95	20	35	2.82	10B2Z33	120	20	45	5.59	10B3Z33	120	20	60	7.97
34	178.9	172.05	10B1Z34	95	20	35	2.92	10B2Z34	120	20	45	5.84	10B3Z34	120	20	60	8.36
35	184.0	177.10	10B1Z35	95	20	35	3.01	10B2Z35	120	20	45	6.11	10B3Z35	120	20	60	8.74
36	189.0	182.15	10B1Z36	100	20	35	3.27	10B2Z36	120	20	45	6.38	10B3Z36	120	25	60	9.15
37	194.1	187.20	10B1Z37	100	20	35	3.37	10B2Z37	120	20	45	6.66	10B3Z37	120	25	60	9.61
38	199.1	192.24	10B1Z38	100	20	35	3.47	10B2Z38	120	20	45	6.95	10B3Z38	120	25	60	10.08
39	204.2	197.29	10B1Z39	100	20	35	3.58	10B2Z39	120	20	45	7.25	10B3Z39	120	25	60	10.57
40	209.2	202.34	10B1Z40	100	20	35	3.69	10B2Z40	120	20	45	7.55	10B3Z40	120	25	60	11.07
42	220.8	212.44	10B1Z42	*108	20	43	4.73	10B2Z42	*120	25	59	9.35	10B3Z42
45	236.0	227.58	10B1Z45	*108	20	43	5.09	10B2Z45	*120	25	59	10.32	10B3Z45	*136	25	74	15.70
46	241.0	236.63	10B1Z46	*108	20	43	5.19	10B2Z46	*120	25	59	10.67	10B3Z46
48	251.1	242.73	10B1Z48	*108	20	43	5.43	10B2Z48	*120	25	59	11.40	10B3Z48
50	261.2	252.82	10B1Z50	*108	20	43	5.70	10B2Z50	*120	25	59	12.11	10B3Z50	*136	25	74	18.83
55	286.5	278.08	10B1Z55	*108	20	43	6.40	10B2Z55					10B3Z55
57	296.6	288.18	10B1Z57	*108	25	43	6.66	10B2Z57	*120	25	59	15.74	10B3Z57	*136	25	74	23.40
60	311.7	303.32	10B1Z60	*108	25	43	7.15	10B2Z60	*120	25	59	16.40	10B3Z60	*136	25	74	25.80
76	392.5	384.16	10B1Z76	*108	25	43	10.28	10B2Z76	*120	25	59	24.93	10B3Z76	*145	30	75	40.25
95	488.5	480.14	10B1Z95	*118	30	59	16.36	10B2Z95	*145	30	58	38.90	10B3Z95	*145	30	75	55.35
